OSMC 2025: Auto Discovery with Icinga by Lennart Betz.pdf
In a live demo, I will show the possibilities for automatically recording hosts and services in Icinga. Here, the director isn’t, and only Puppet is used. However, the concepts can of course be transferred to other automation tools and achieve similar results.
OSMC 2025: Auto Discovery with Icinga by Lennart Betz.pdf
- 1. © betadots GmbH2024

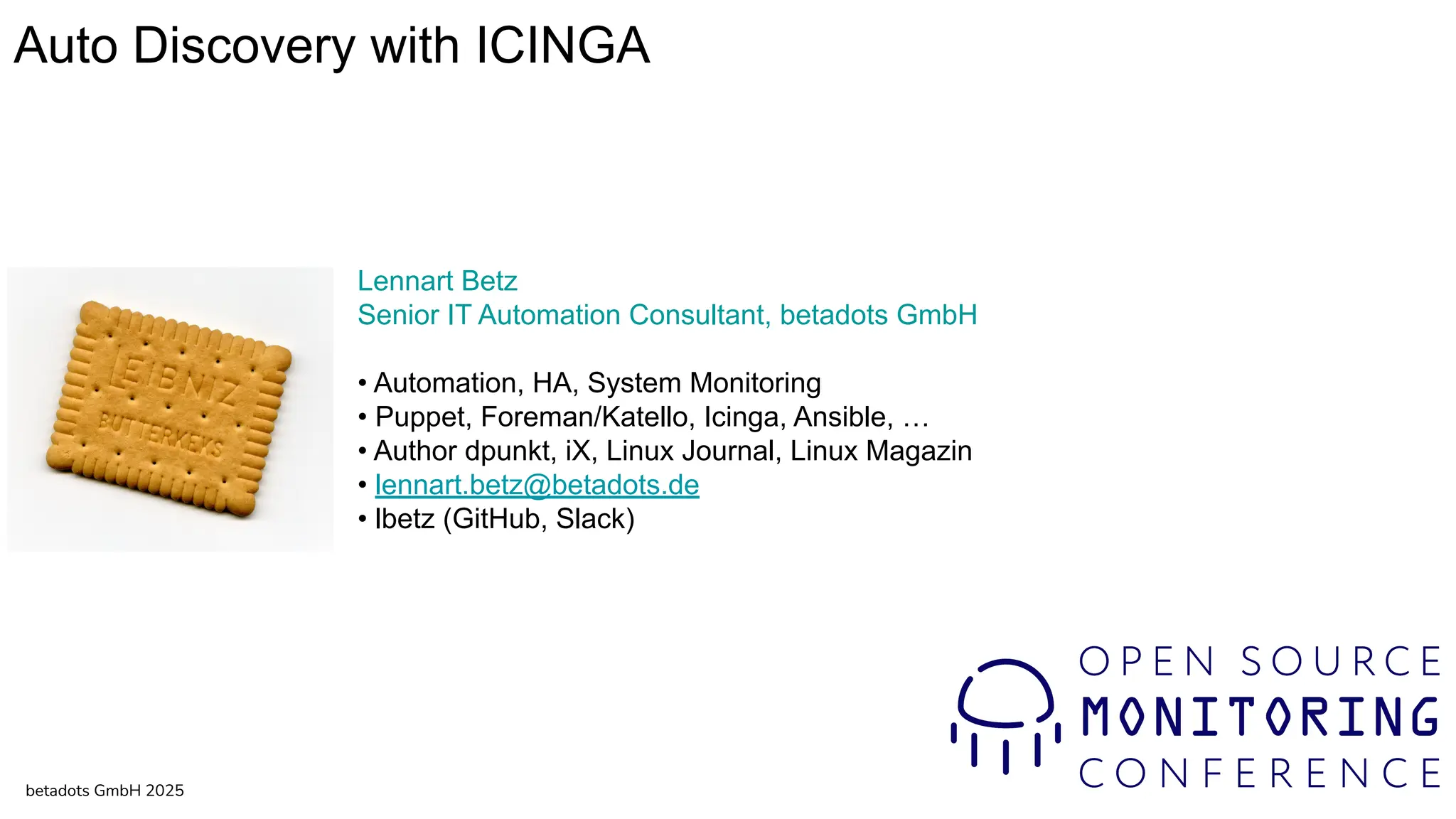

- 2. Lennart Betz Senior ITAutomation Consultant, betadots GmbH • Automation, HA, System Monitoring • Puppet, Foreman/Katello, Icinga, Ansible, … • Author dpunkt, iX, Linux Journal, Linux Magazin • lennart.betz@betadots.de • lbetz (GitHub, Slack) betadots GmbH 2025 Auto Discovery with ICINGA
- 3. © betadots GmbH2024 ICINGA Base Knowledge betadots GmbH 2025 CC-BY-NC-SA 4.0

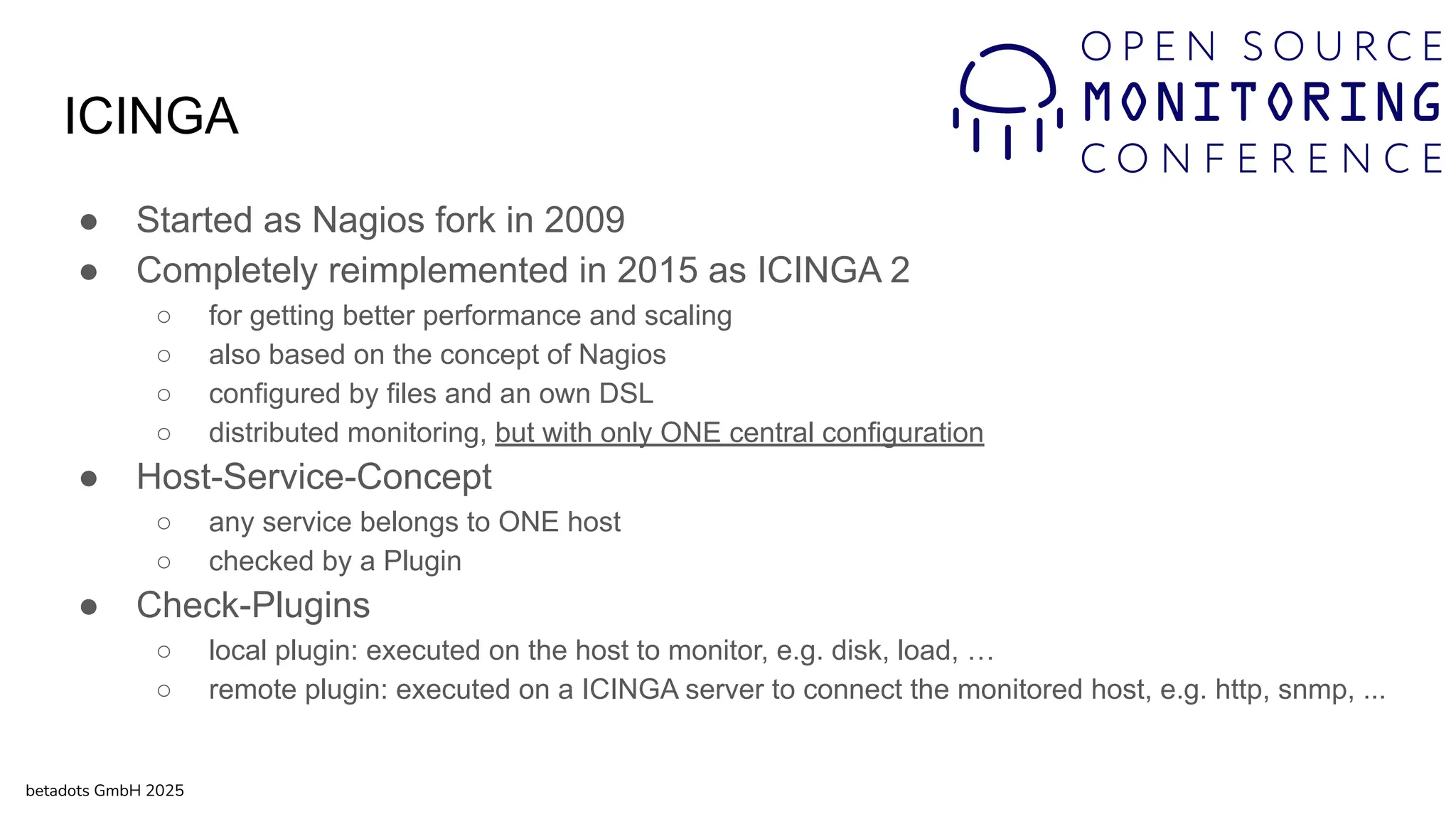

- 4. ICINGA ● Started asNagios fork in 2009 ● Completely reimplemented in 2015 as ICINGA 2 ○ for getting better performance and scaling ○ also based on the concept of Nagios ○ configured by files and an own DSL ○ distributed monitoring, but with only ONE central configuration ● Host-Service-Concept ○ any service belongs to ONE host ○ checked by a Plugin ● Check-Plugins ○ local plugin: executed on the host to monitor, e.g. disk, load, … ○ remote plugin: executed on a ICINGA server to connect the monitored host, e.g. http, snmp, ... betadots GmbH 2025

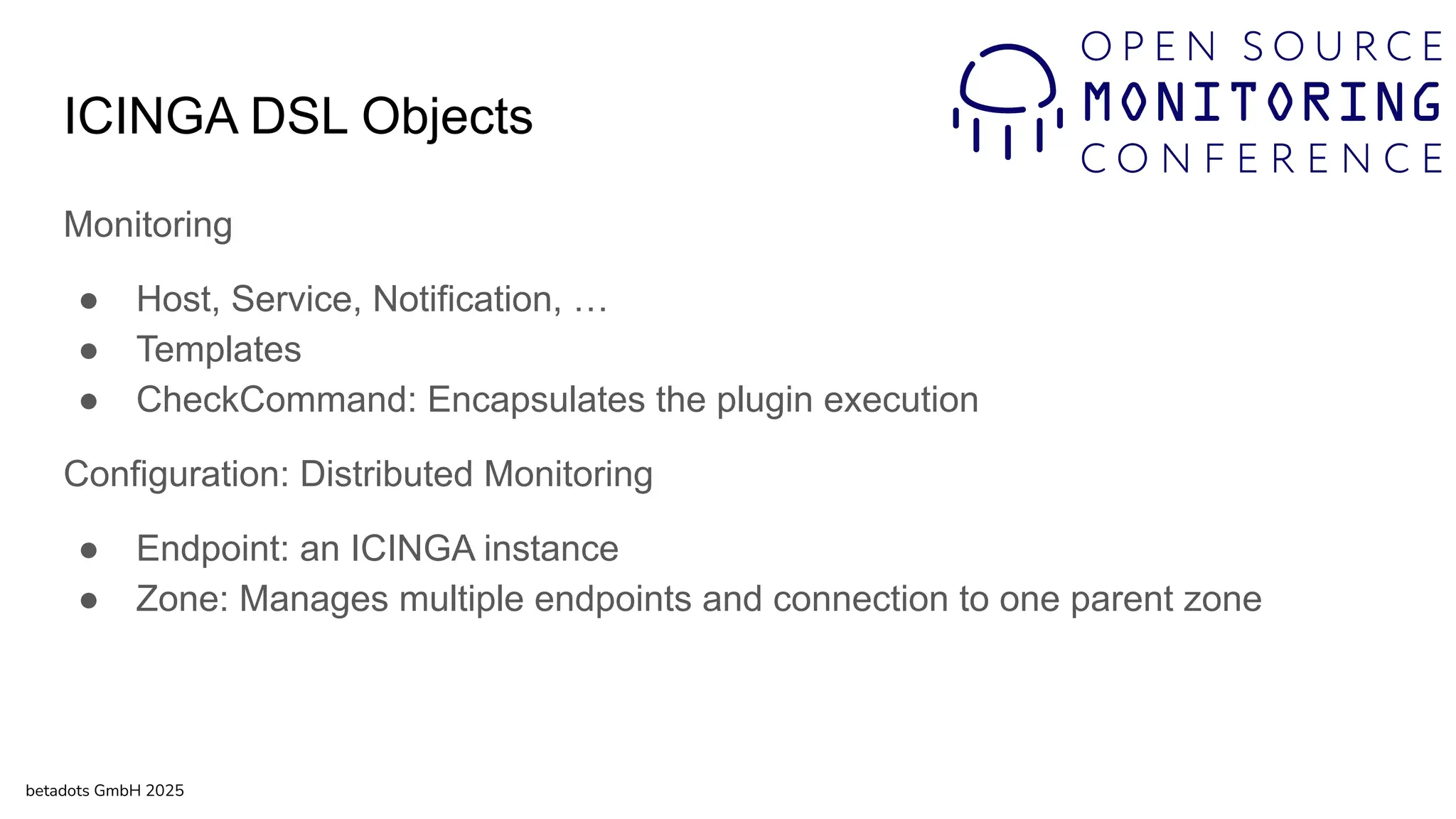

- 5. ICINGA DSL Objects Monitoring ●Host, Service, Notification, … ● Templates ● CheckCommand: Encapsulates the plugin execution Configuration: Distributed Monitoring ● Endpoint: an ICINGA instance ● Zone: Manages multiple endpoints and connection to one parent zone betadots GmbH 2025
- 6. © betadots GmbH2024 OpenVox Automated Monitoring betadots GmbH 2025 CC-BY-NC-SA 4.0

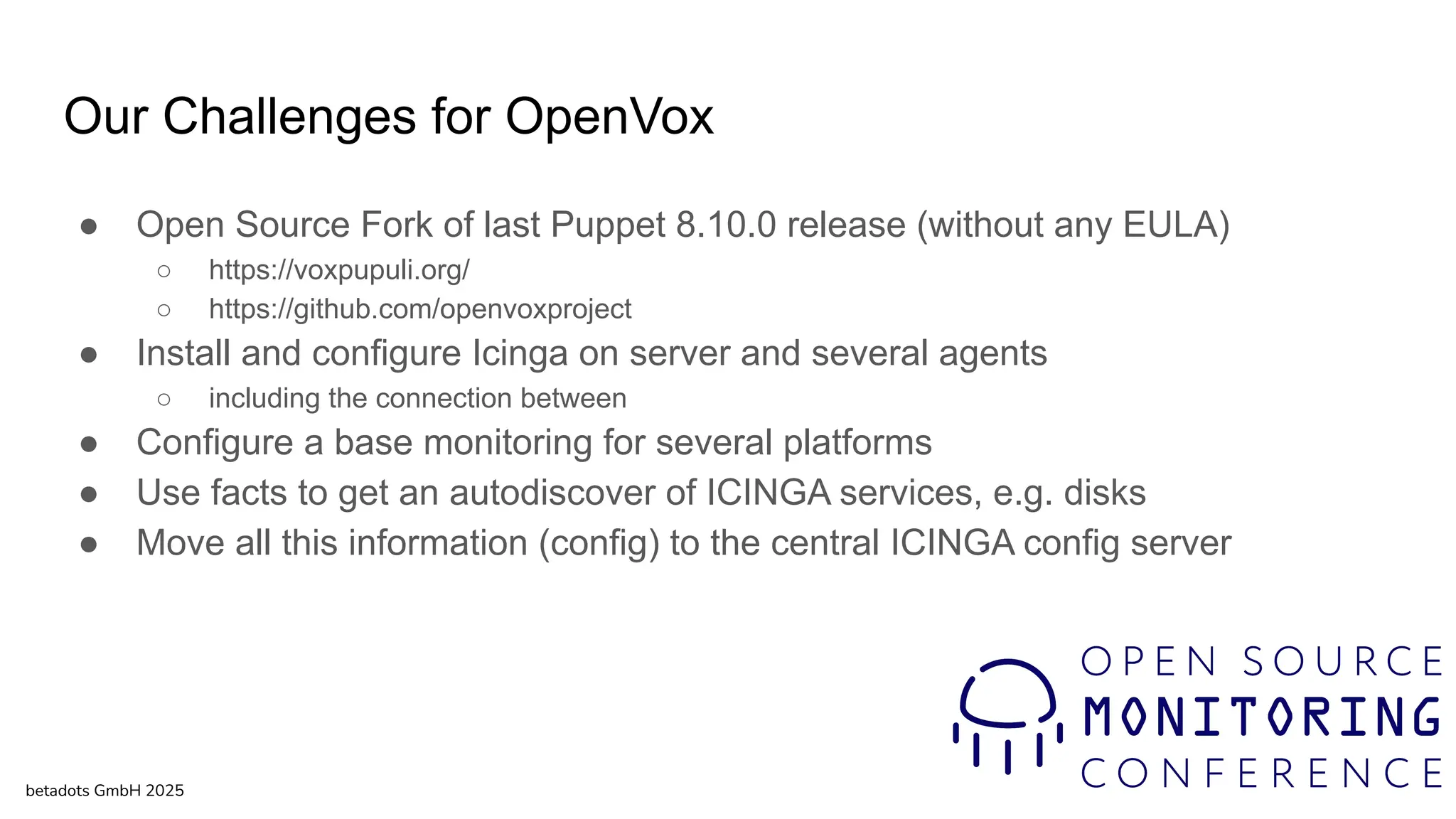

- 7. Our Challenges forOpenVox ● Open Source Fork of last Puppet 8.10.0 release (without any EULA) ○ https://voxpupuli.org/ ○ https://github.com/openvoxproject ● Install and configure Icinga on server and several agents ○ including the connection between ● Configure a base monitoring for several platforms ● Use facts to get an autodiscover of ICINGA services, e.g. disks ● Move all this information (config) to the central ICINGA config server betadots GmbH 2025

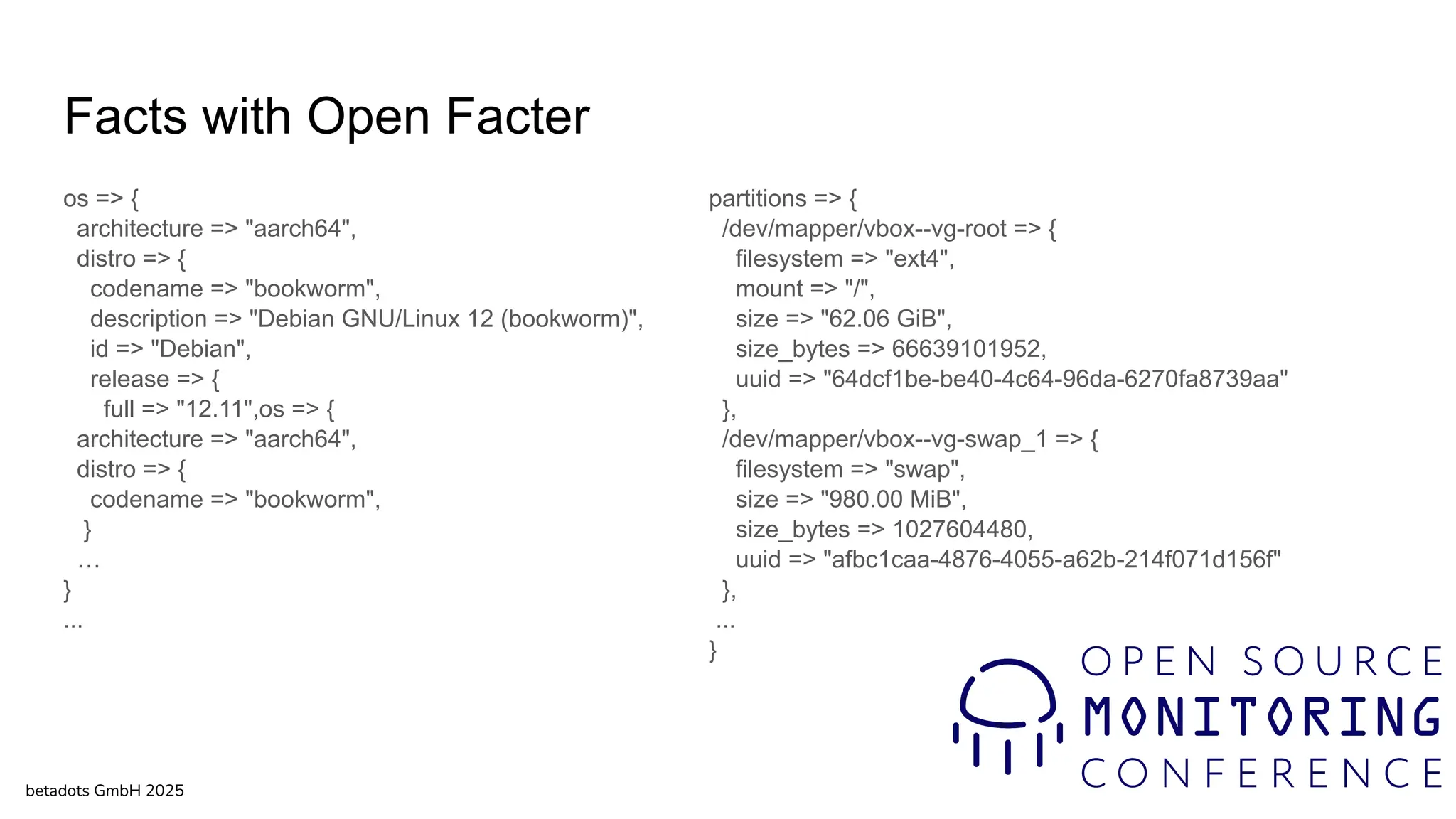

- 8. Facts with OpenFacter os => { architecture => "aarch64", distro => { codename => "bookworm", description => "Debian GNU/Linux 12 (bookworm)", id => "Debian", release => { full => "12.11",os => { architecture => "aarch64", distro => { codename => "bookworm", } … } ... betadots GmbH 2025 partitions => { /dev/mapper/vbox--vg-root => { filesystem => "ext4", mount => "/", size => "62.06 GiB", size_bytes => 66639101952, uuid => "64dcf1be-be40-4c64-96da-6270fa8739aa" }, /dev/mapper/vbox--vg-swap_1 => { filesystem => "swap", size => "980.00 MiB", size_bytes => 1027604480, uuid => "afbc1caa-4876-4055-a62b-214f071d156f" }, ... }

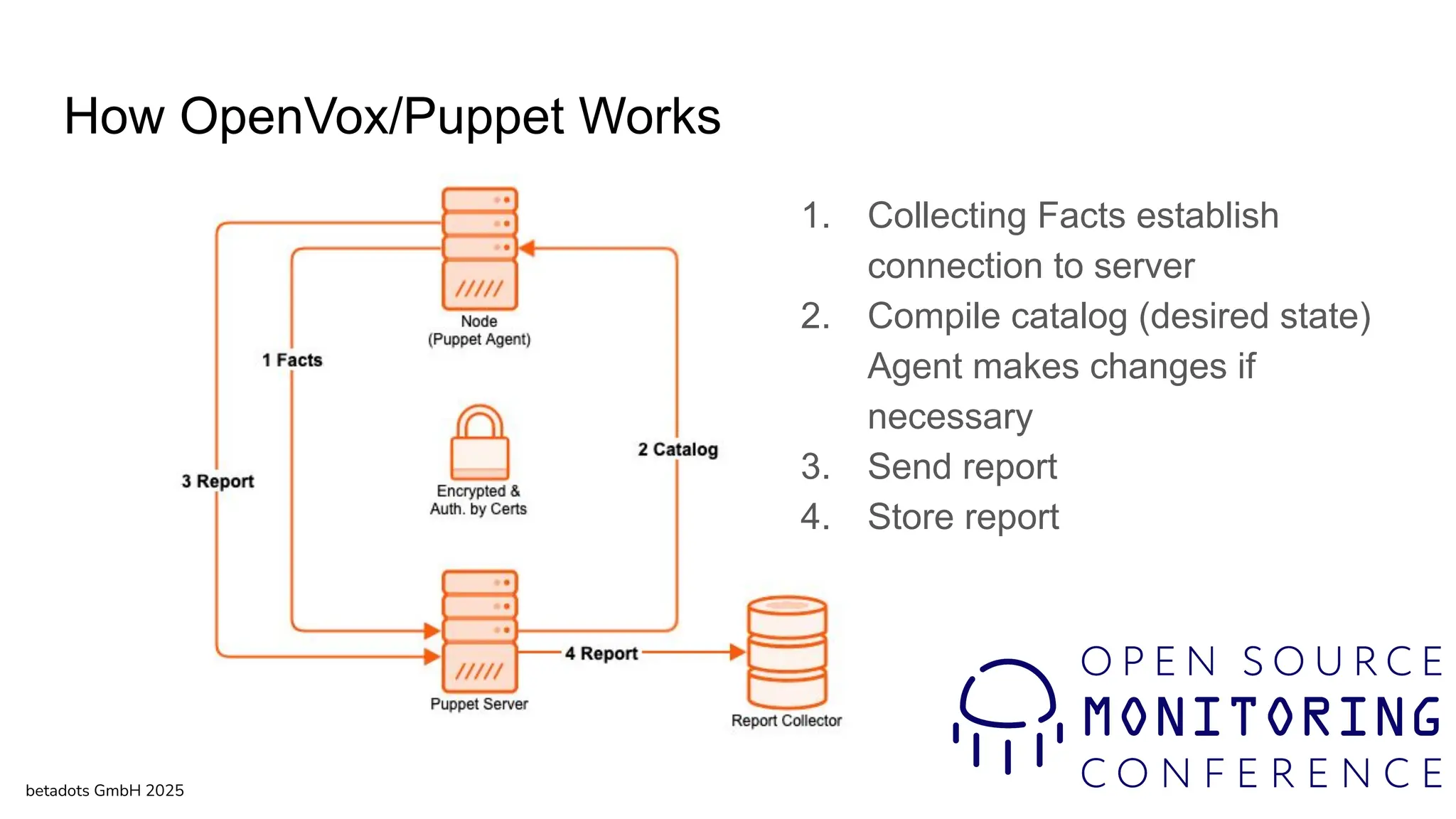

- 9. How OpenVox/Puppet Works betadotsGmbH 2025 1. Collecting Facts establish connection to server 2. Compile catalog (desired state) Agent makes changes if necessary 3. Send report 4. Store report

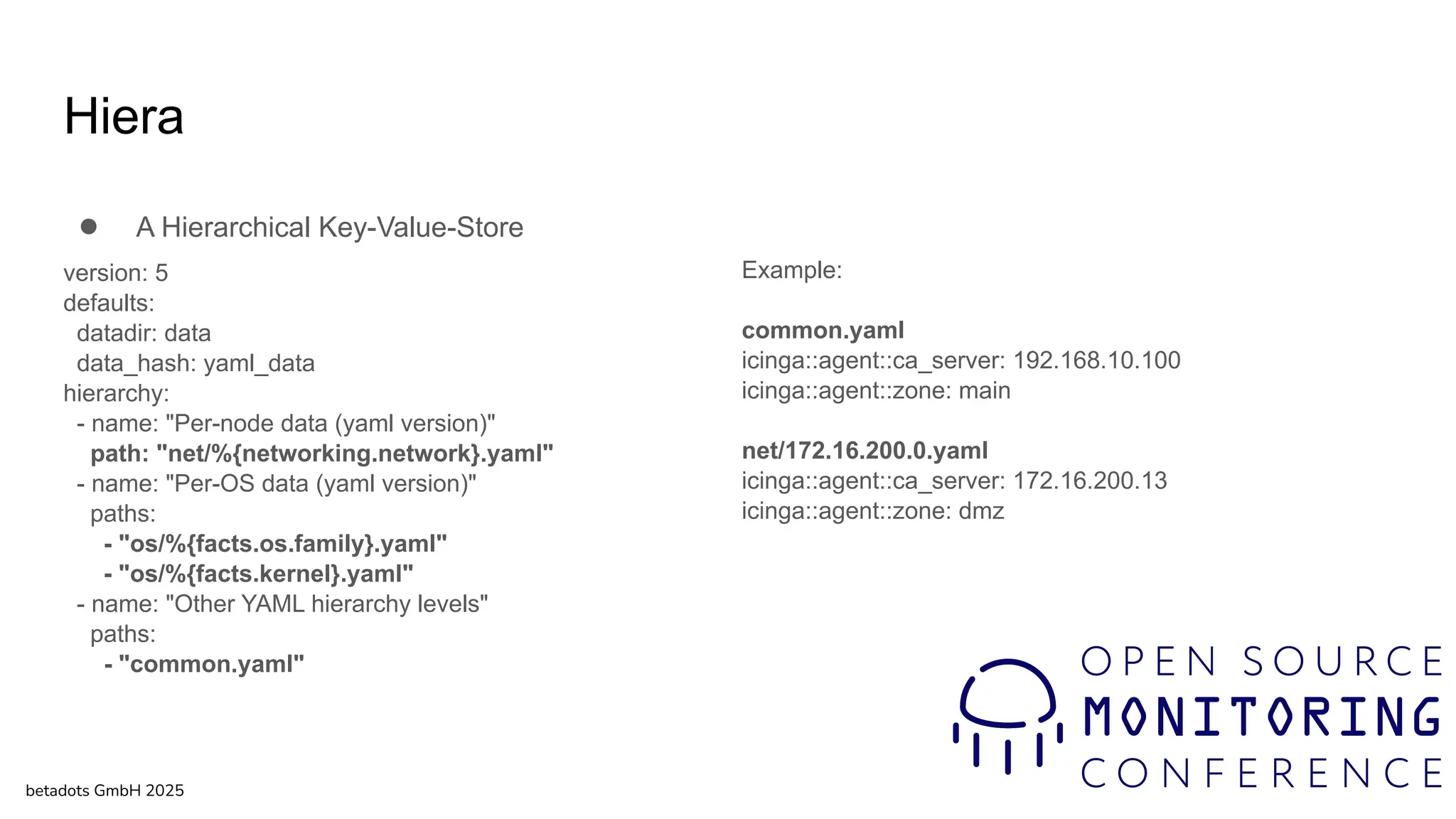

- 10. Hiera ● A HierarchicalKey-Value-Store version: 5 defaults: datadir: data data_hash: yaml_data hierarchy: - name: "Per-node data (yaml version)" path: "net/%{networking.network}.yaml" - name: "Per-OS data (yaml version)" paths: - "os/%{facts.os.family}.yaml" - "os/%{facts.kernel}.yaml" - name: "Other YAML hierarchy levels" paths: - "common.yaml" betadots GmbH 2025 Example: common.yaml icinga::agent::ca_server: 192.168.10.100 icinga::agent::zone: main net/172.16.200.0.yaml icinga::agent::ca_server: 172.16.200.13 icinga::agent::zone: dmz

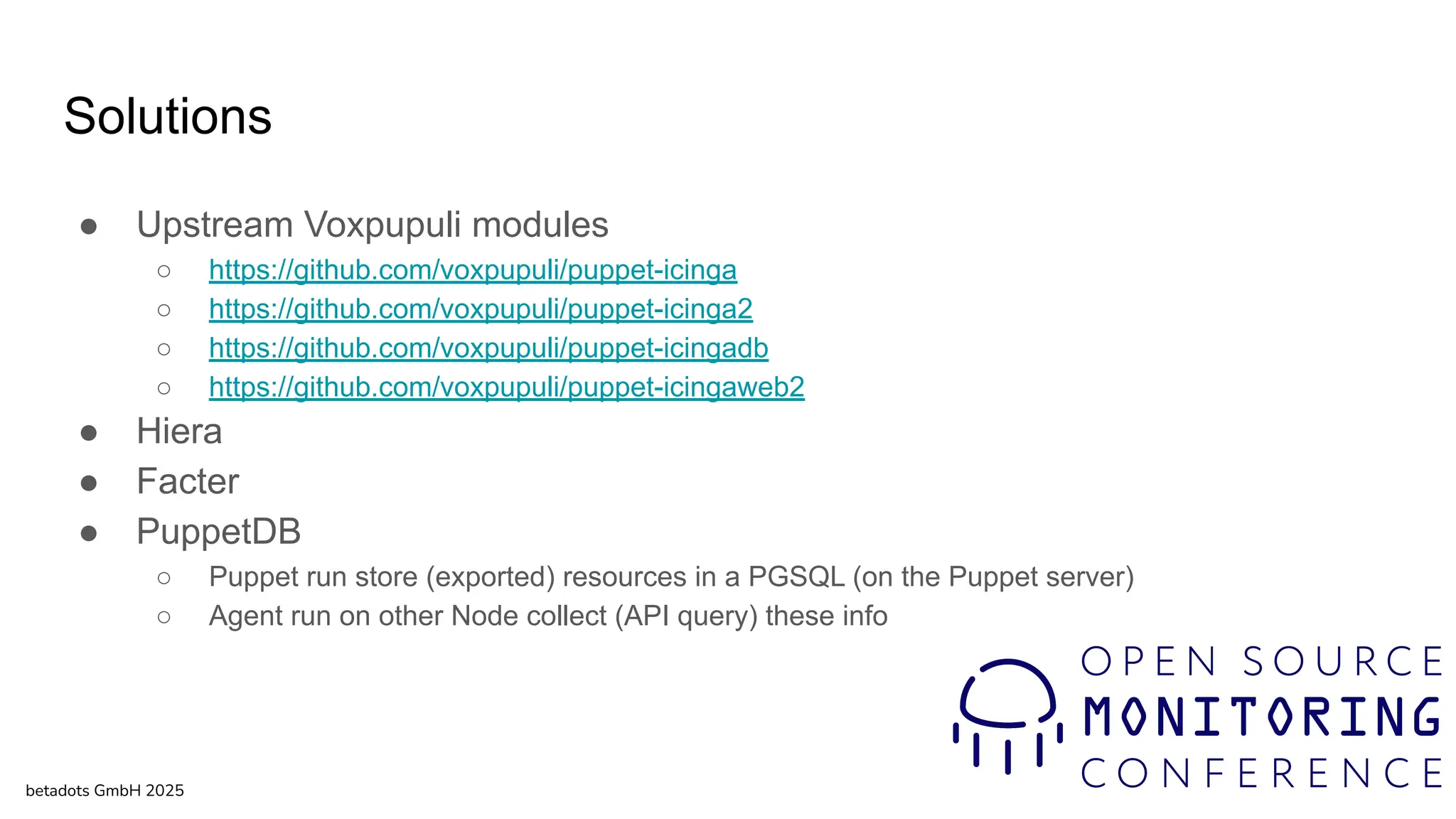

- 11. Solutions ● Upstream Voxpupulimodules ○ https://github.com/voxpupuli/puppet-icinga ○ https://github.com/voxpupuli/puppet-icinga2 ○ https://github.com/voxpupuli/puppet-icingadb ○ https://github.com/voxpupuli/puppet-icingaweb2 ● Hiera ● Facter ● PuppetDB ○ Puppet run store (exported) resources in a PGSQL (on the Puppet server) ○ Agent run on other Node collect (API query) these info betadots GmbH 2025
- 12. © betadots GmbH2024 Demo Automated Monitoring betadots GmbH 2025 CC-BY-NC-SA 4.0
