StarRocks Technical
Overview
Albert Wong, albert.wong@celerdata.com
A Linux Foundation Project

Agenda
● State of the OLAP software landscape
● What is StarRocks
● StarRocks’ Release Timeline
● Major Features in StarRocks

State of the OLAP software
landscape

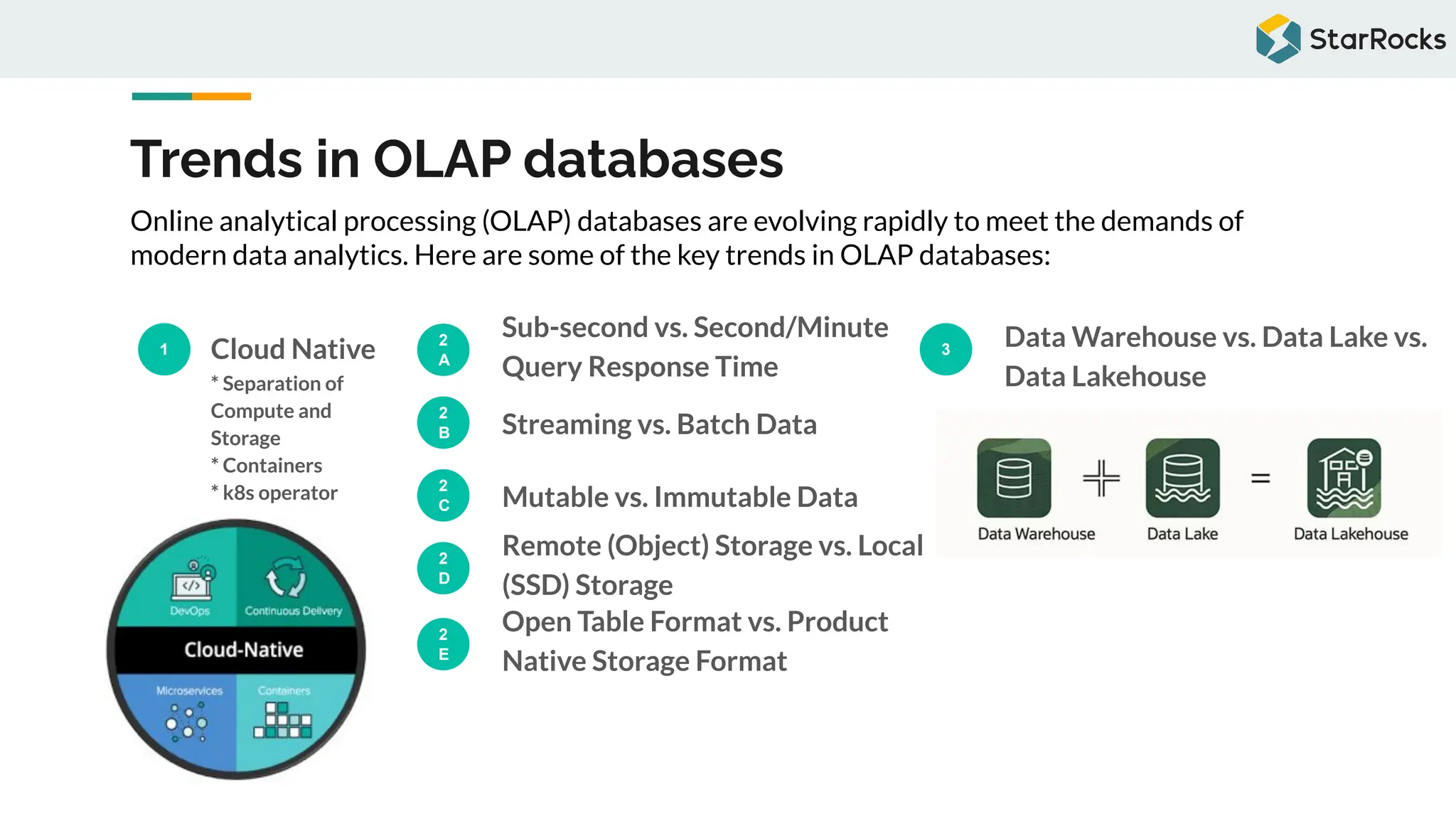

Trends in OLAP databases
1 Cloud Native
* Separation of
Compute and
Storage
* Containers
* k8s operator
2
A
Sub-second vs. Second/Minute
Query Response Time
3
Data Warehouse vs. Data Lake vs.
Data Lakehouse
Online analytical processing (OLAP) databases are evolving rapidly to meet the demands of
modern data analytics. Here are some of the key trends in OLAP databases:
2
B Streaming vs. Batch Data
2
C Mutable vs. Immutable Data
2
D
Remote (Object) Storage vs. Local
(SSD) Storage
2
E
Open Table Format vs. Product
Native Storage Format

Proprietary / Hybrid Open
Open Storage

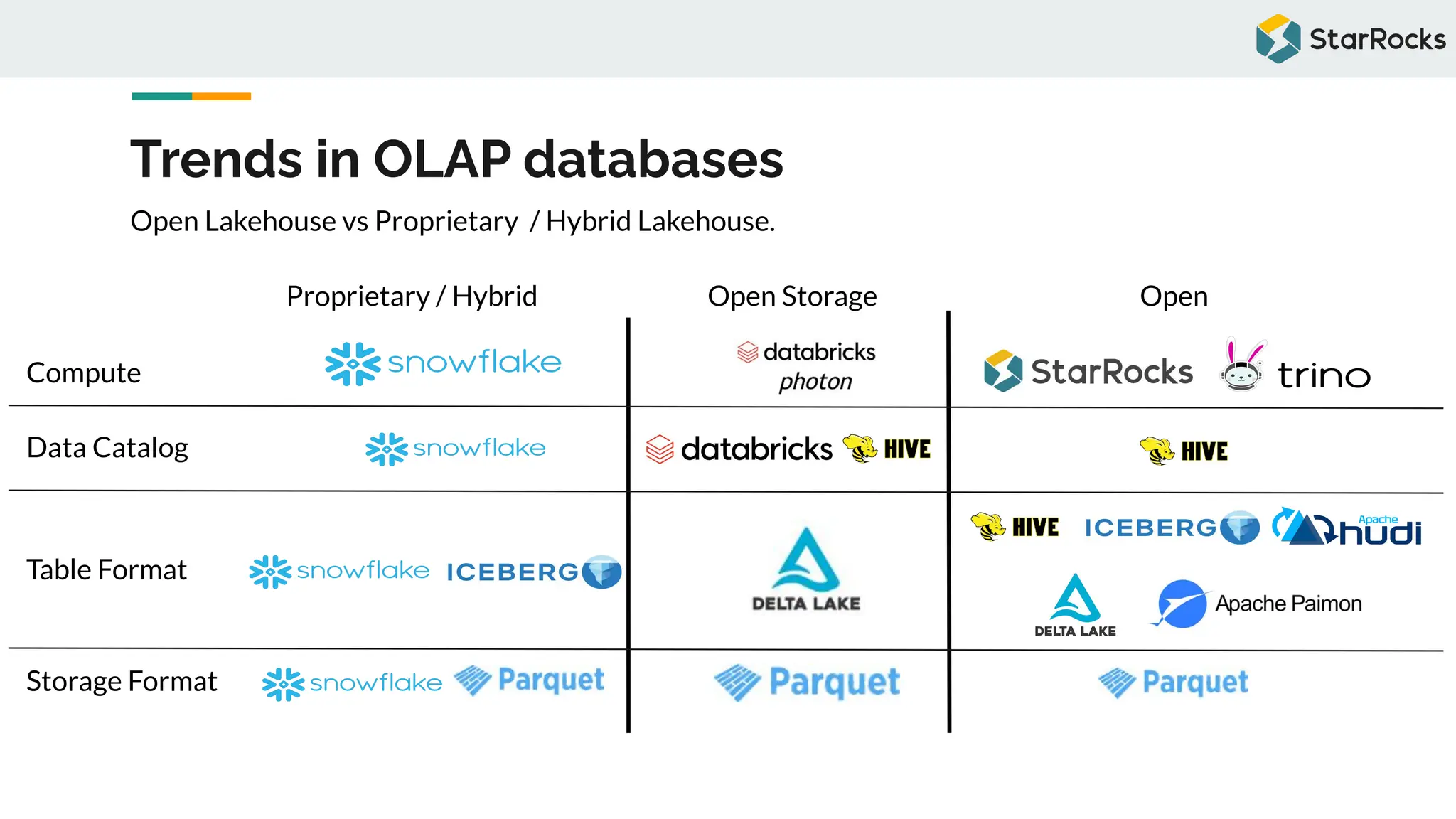

Trends in OLAP databases
Compute
Table Format
Storage Format
Open Lakehouse vs Proprietary / Hybrid Lakehouse.
Data Catalog

StarRocks is an open-source
query engine that delivers data
warehouse performance on the
data lake.

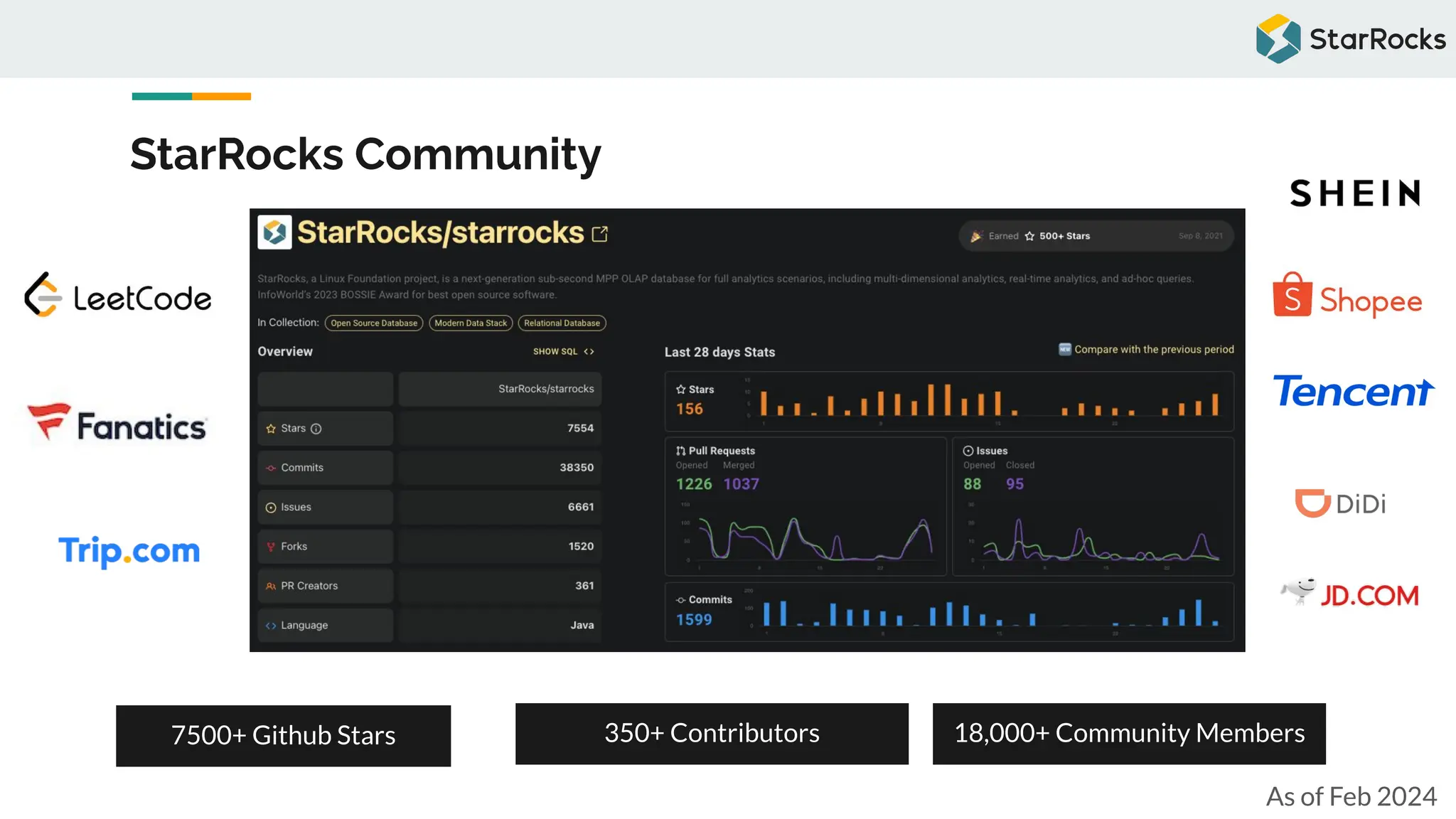

StarRocks Community
7500+ Github Stars 350+ Contributors 18,000+ Community Members
As of Feb 2024

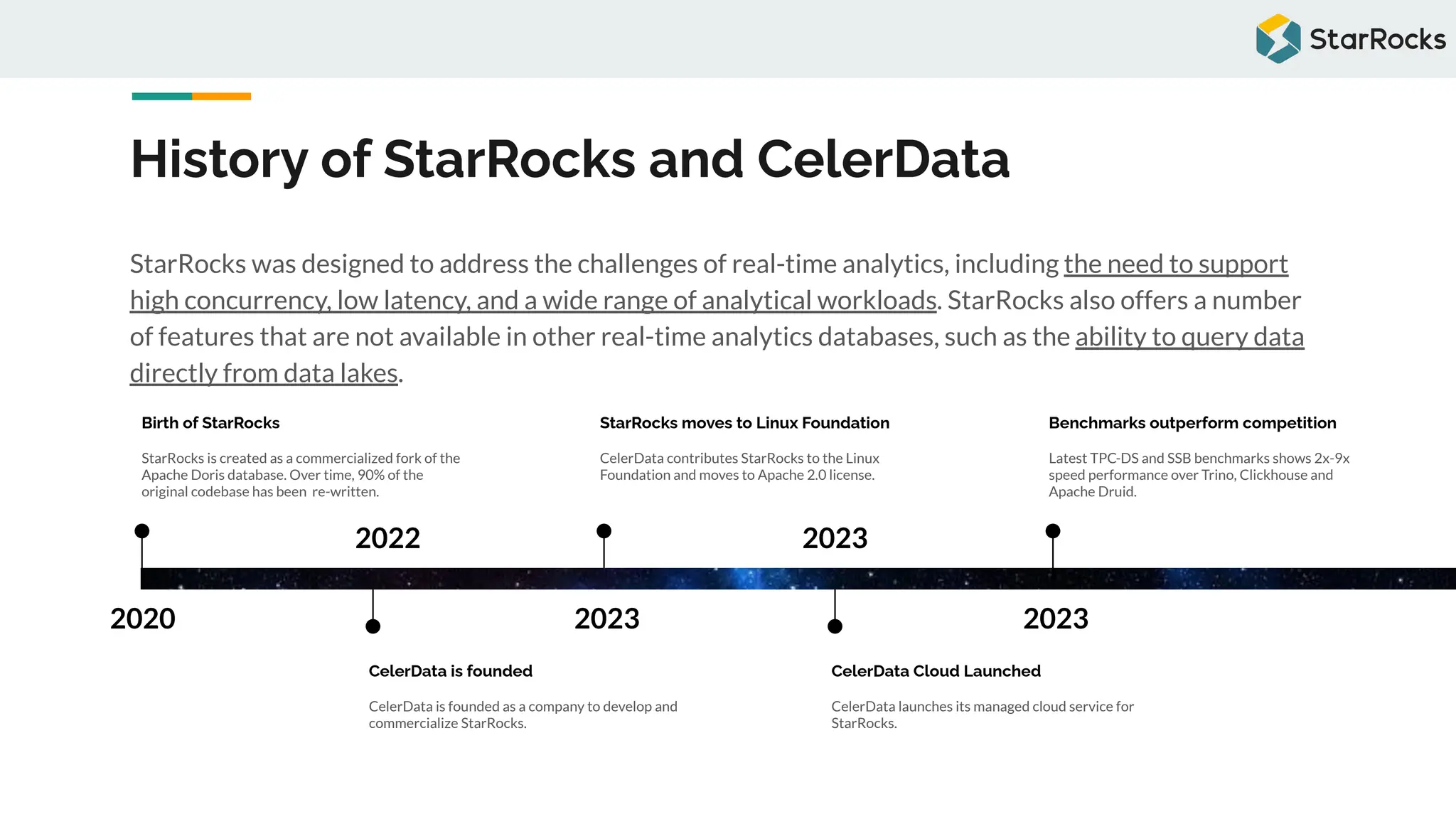

History of StarRocks and CelerData
StarRocks was designed to address the challenges of real-time analytics, including the need to support
high concurrency, low latency, and a wide range of analytical workloads. StarRocks also offers a number
of features that are not available in other real-time analytics databases, such as the ability to query data
directly from data lakes.
2020
Birth of StarRocks
StarRocks is created as a commercialized fork of the
Apache Doris database. Over time, 90% of the
original codebase has been re-written.
2022
CelerData is founded
CelerData is founded as a company to develop and
commercialize StarRocks.
2023
StarRocks moves to Linux Foundation
CelerData contributes StarRocks to the Linux
Foundation and moves to Apache 2.0 license.
2023
CelerData Cloud Launched
CelerData launches its managed cloud service for
StarRocks.
2023

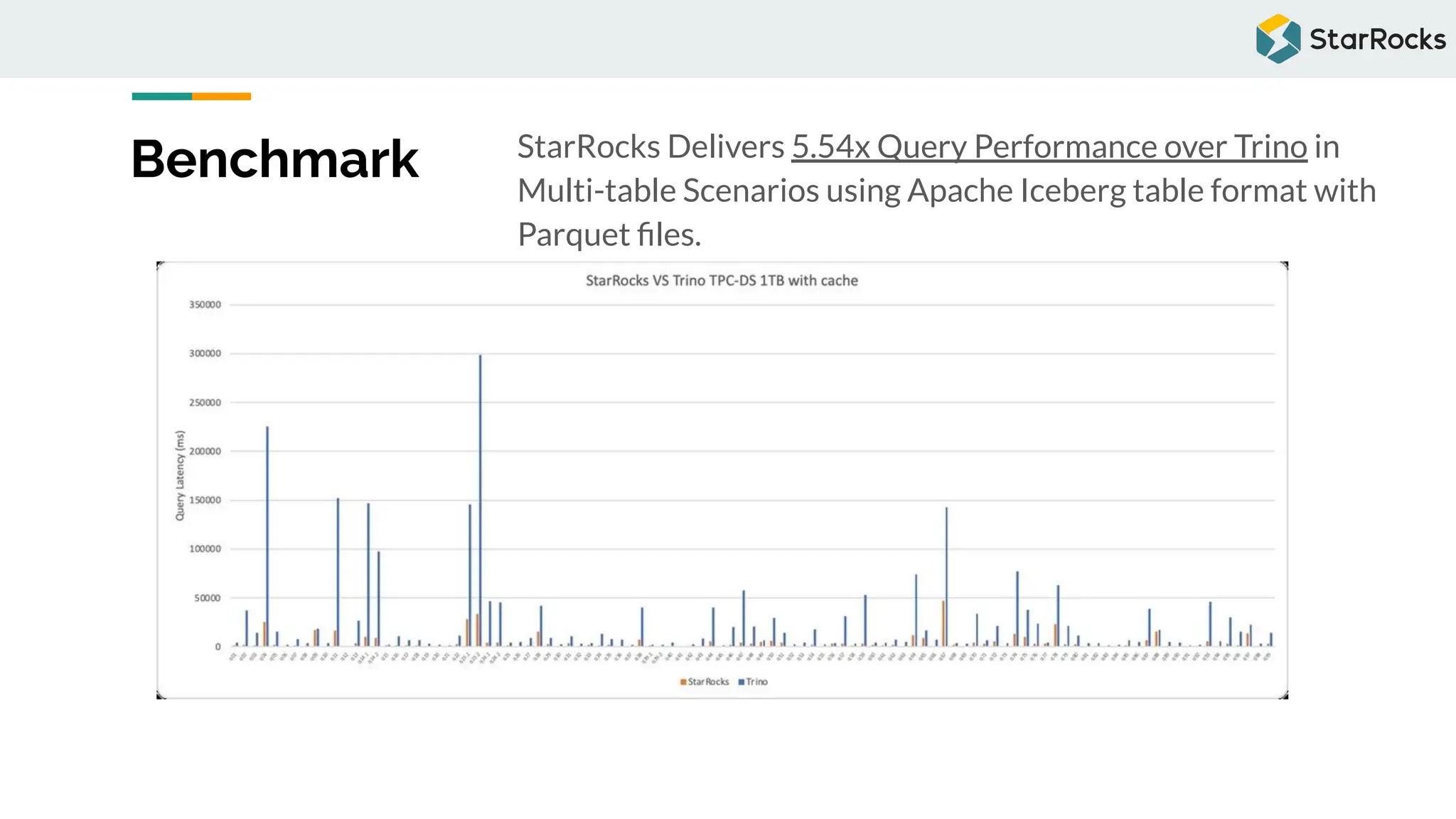

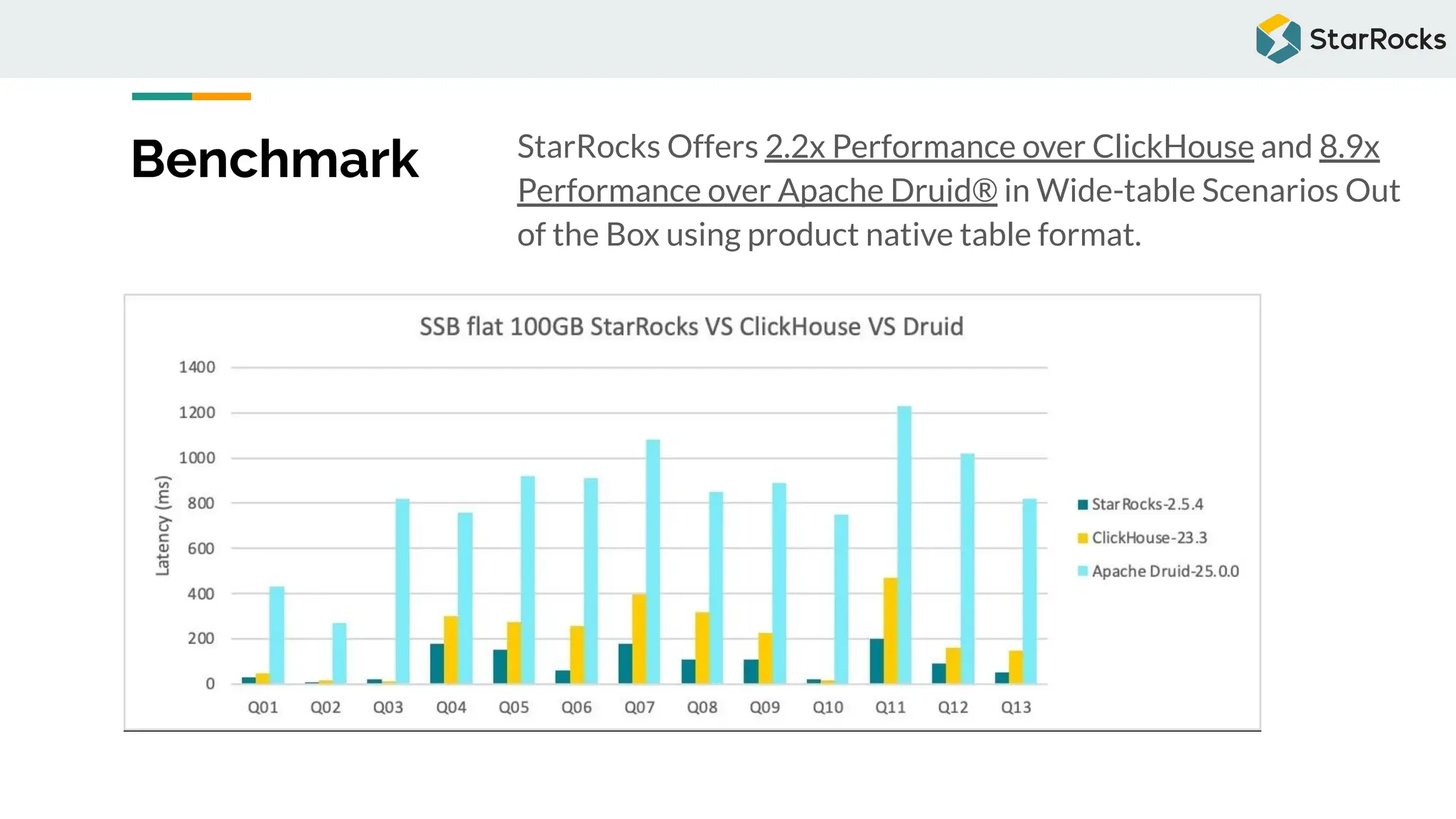

Benchmarks outperform competition
Latest TPC-DS and SSB benchmarks shows 2x-9x
speed performance over Trino, Clickhouse and
Apache Druid.

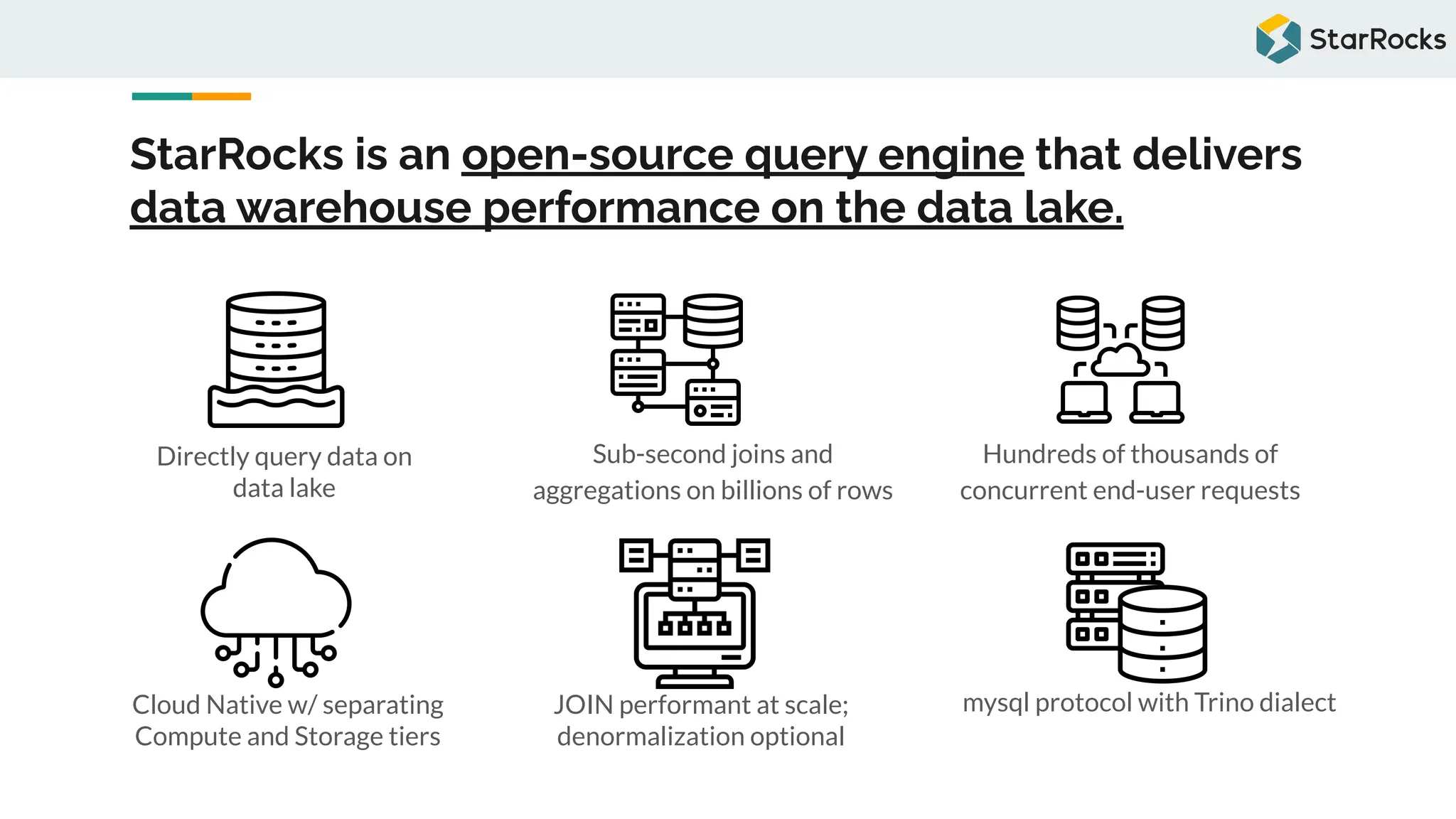

StarRocks is an open-source query engine that delivers
data warehouse performance on the data lake.

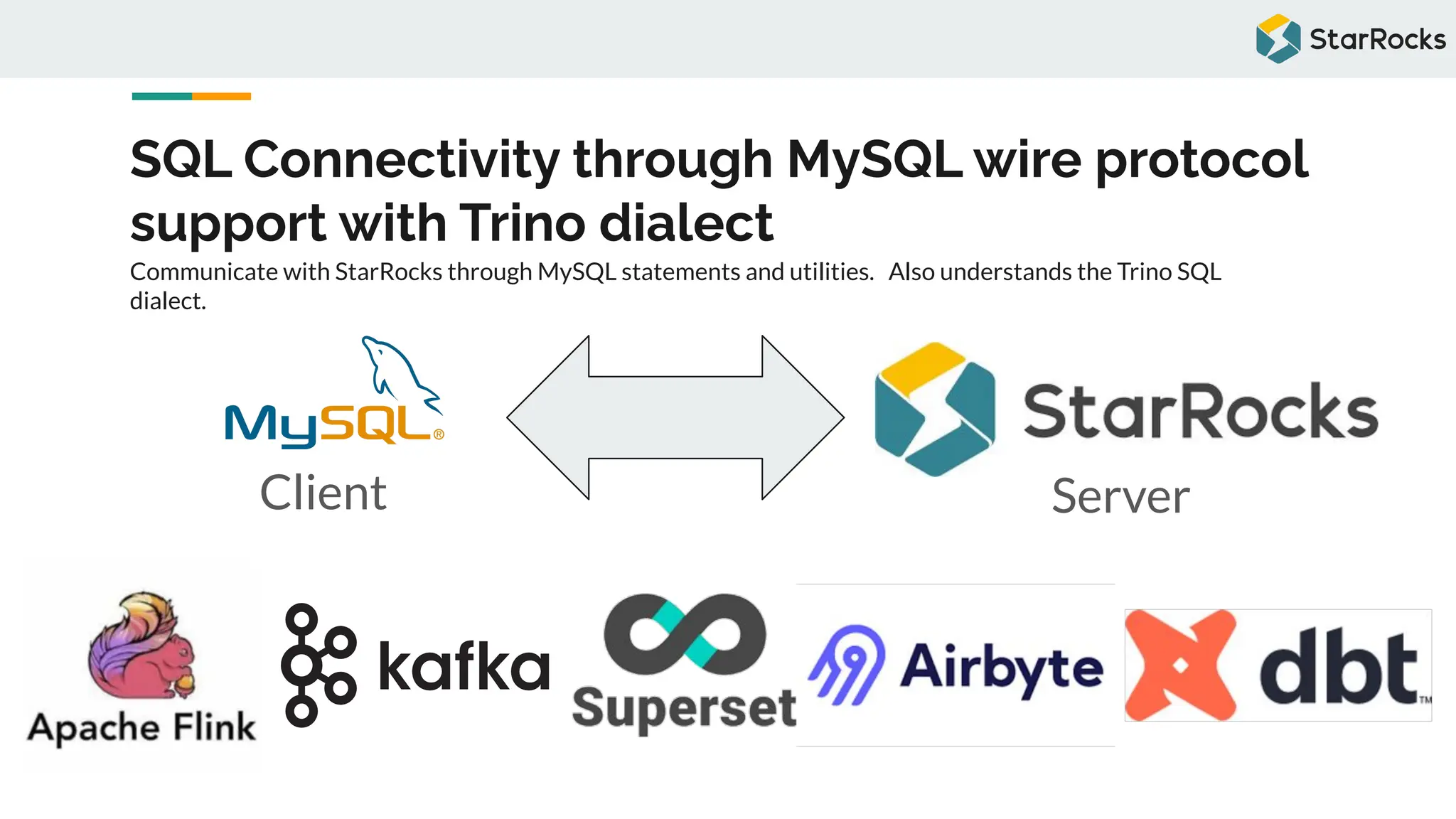

mysql protocol with Trino dialect
Directly query data on
data lake
Sub-second joins and
aggregations on billions of rows
Hundreds of thousands of
concurrent end-user requests
JOIN performant at scale;
denormalization optional
Cloud Native w/ separating
Compute and Storage tiers

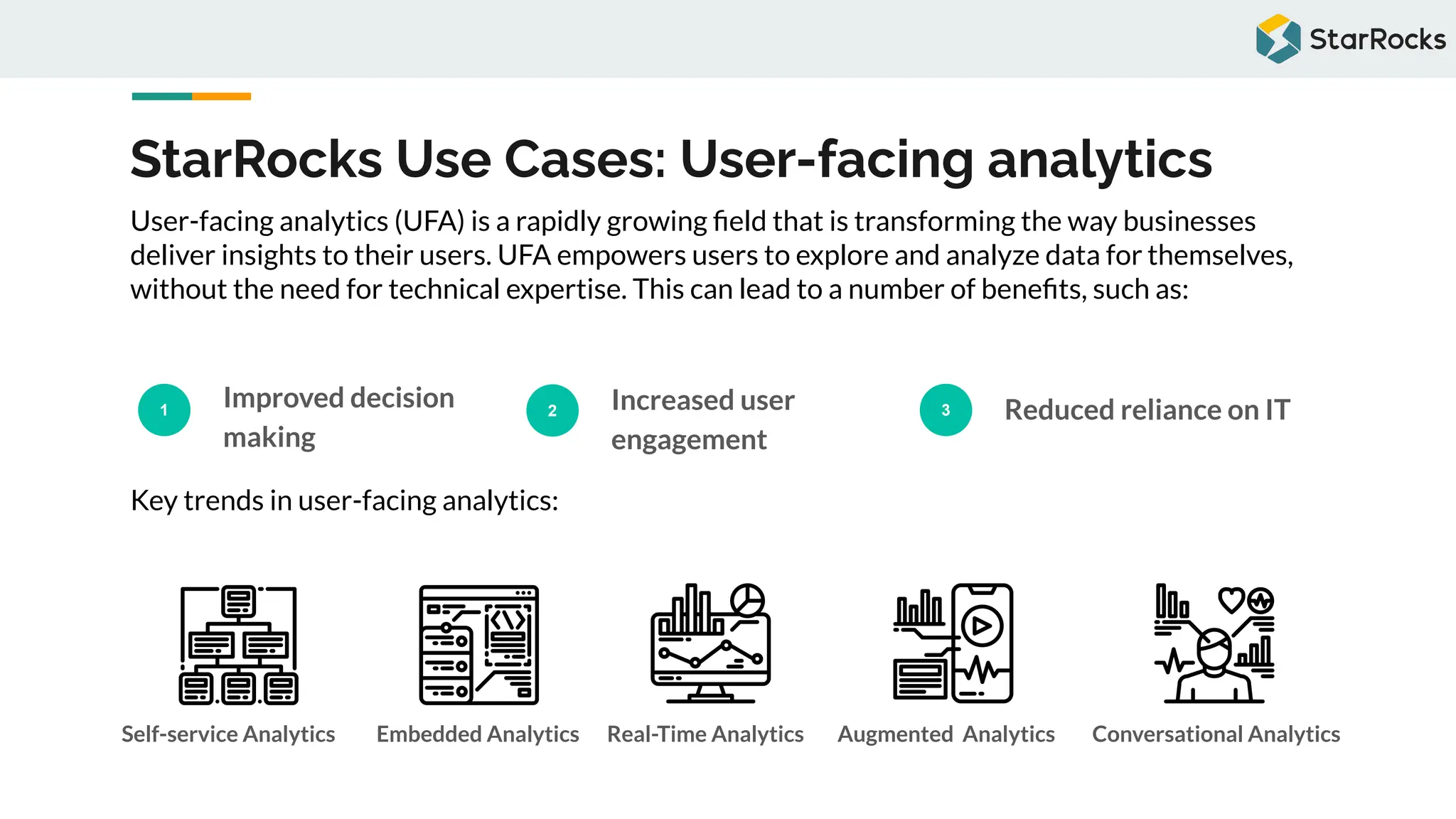

StarRocks Use Cases: User-facing analytics
1
Improved decision
making
2 Increased user
engagement
3 Reduced reliance on IT
User-facing analytics (UFA) is a rapidly growing ﬁeld that is transforming the way businesses
deliver insights to their users. UFA empowers users to explore and analyze data for themselves,
without the need for technical expertise. This can lead to a number of beneﬁts, such as:
Key trends in user-facing analytics:
Self-service Analytics Embedded Analytics Real-Time Analytics Augmented Analytics Conversational Analytics

StarRocks Use Cases: Real-time analytics
1 Make better decisions 2 Increased user
engagement
3
Staying ahead of the
competition
Real-time analytics is the process of collecting, processing, and analyzing data as it is
generated, in order to gain insights into the present state of a system or process. This can lead
to a number of beneﬁts, such as:
Key trends in real-time analytics:
Rise of streaming data Growth of Edge Computing Increasing use of machine
learning
Democratization of real-time
analytics

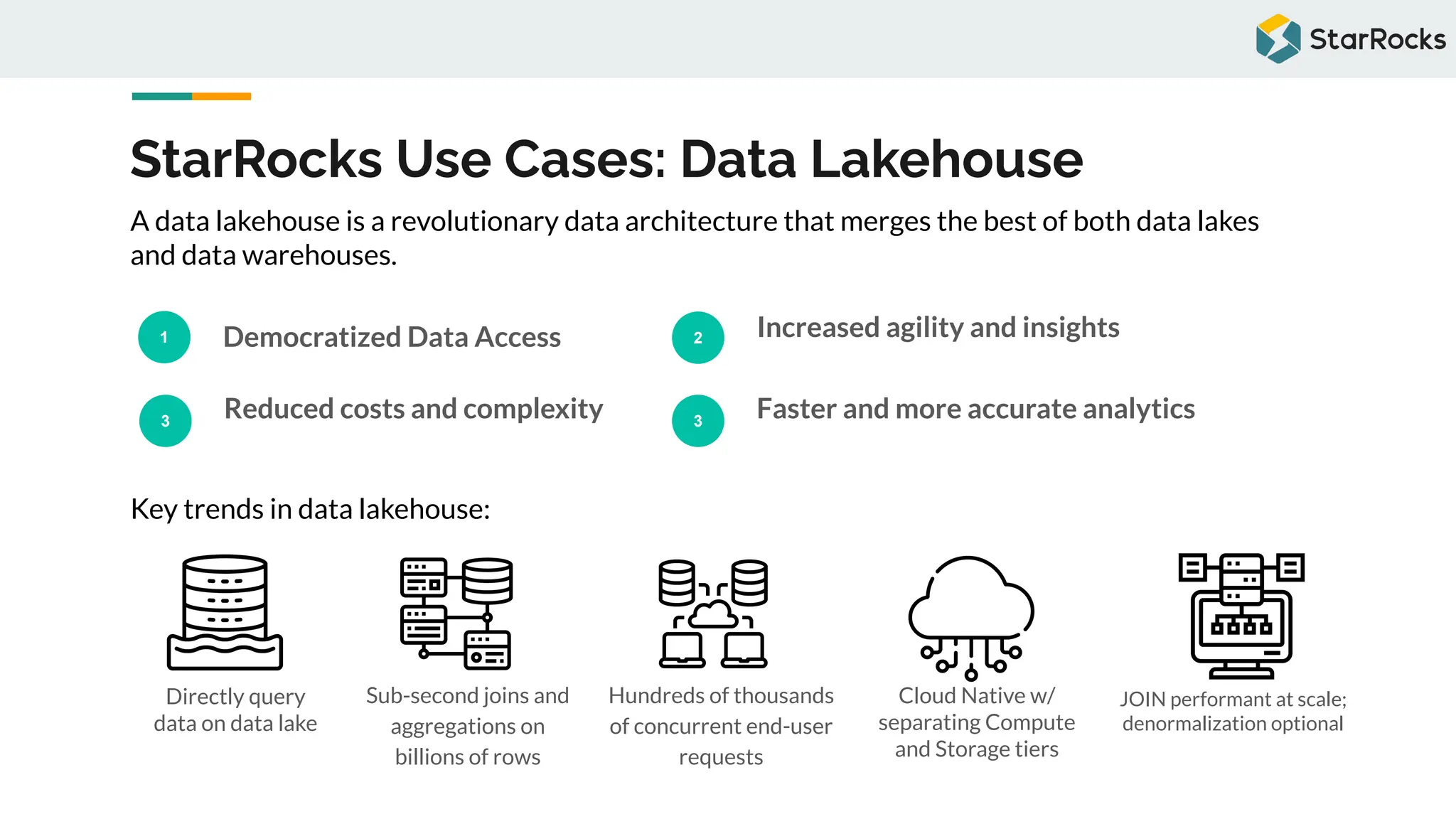

StarRocks Use Cases: Data Lakehouse
1 Democratized Data Access 2 Increased agility and insights
3
Reduced costs and complexity
A data lakehouse is a revolutionary data architecture that merges the best of both data lakes
and data warehouses.
Key trends in data lakehouse:
3
Faster and more accurate analytics
Directly query
data on data lake
Sub-second joins and
aggregations on
billions of rows
Hundreds of thousands
of concurrent end-user
requests
JOIN performant at scale;
denormalization optional
Cloud Native w/
separating Compute
and Storage tiers

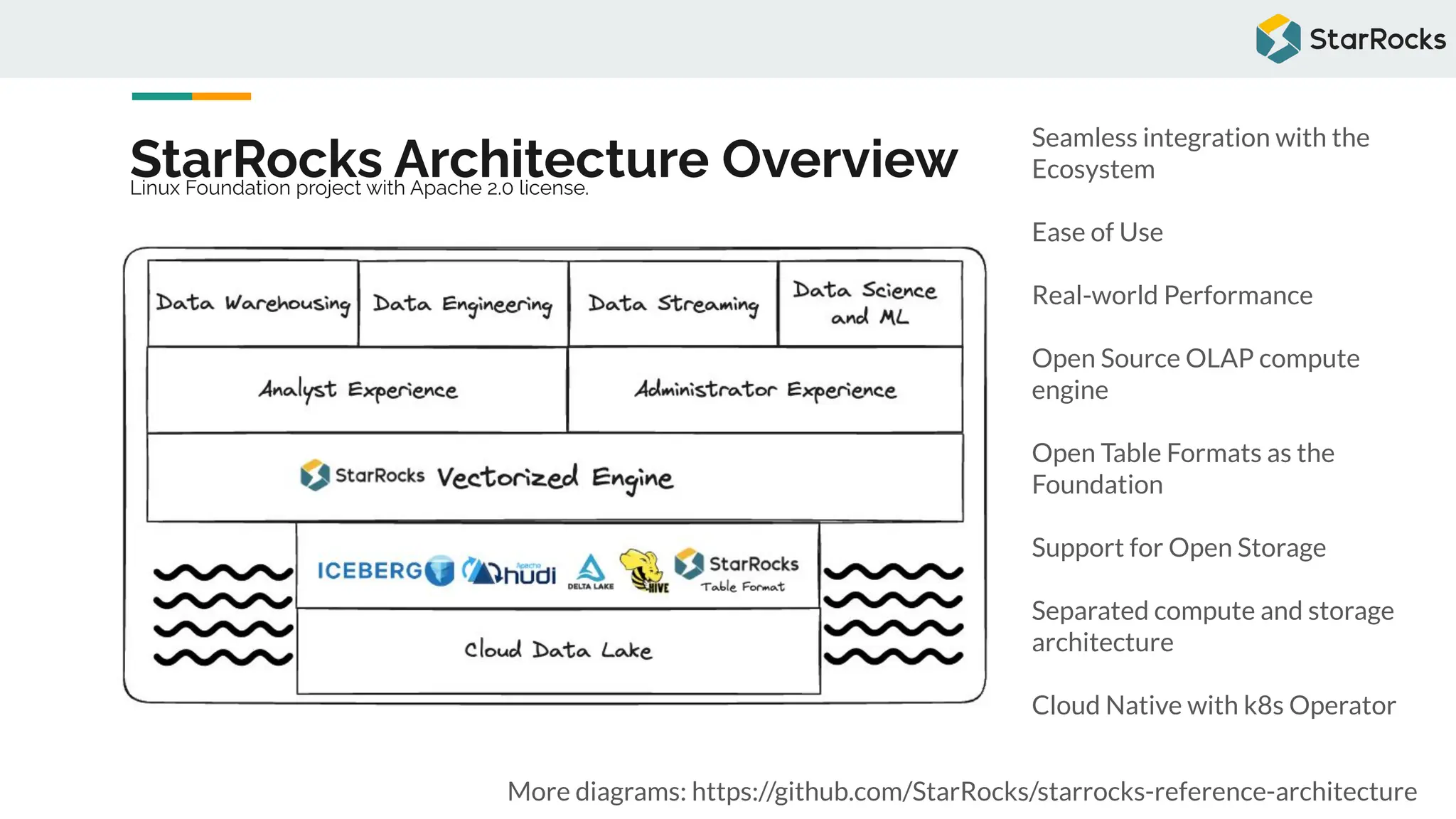

StarRocks Architecture Overview
More diagrams: https://github.com/StarRocks/starrocks-reference-architecture
Seamless integration with the
Ecosystem
Ease of Use
Real-world Performance
Open Source OLAP compute
engine
Open Table Formats as the
Foundation
Support for Open Storage

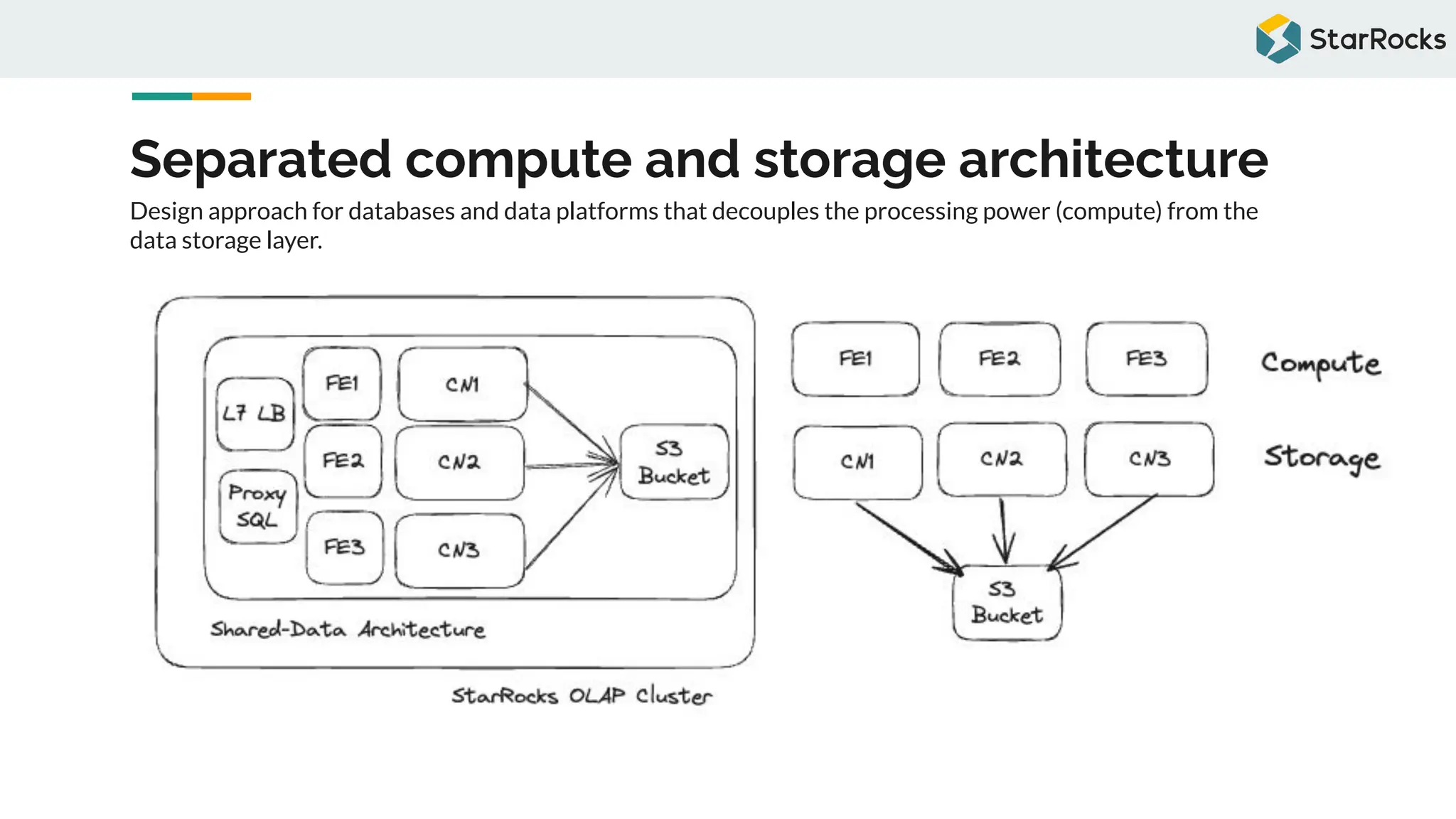

Separated compute and storage
architecture
Cloud Native with k8s Operator
Linux Foundation project with Apache 2.0 license.

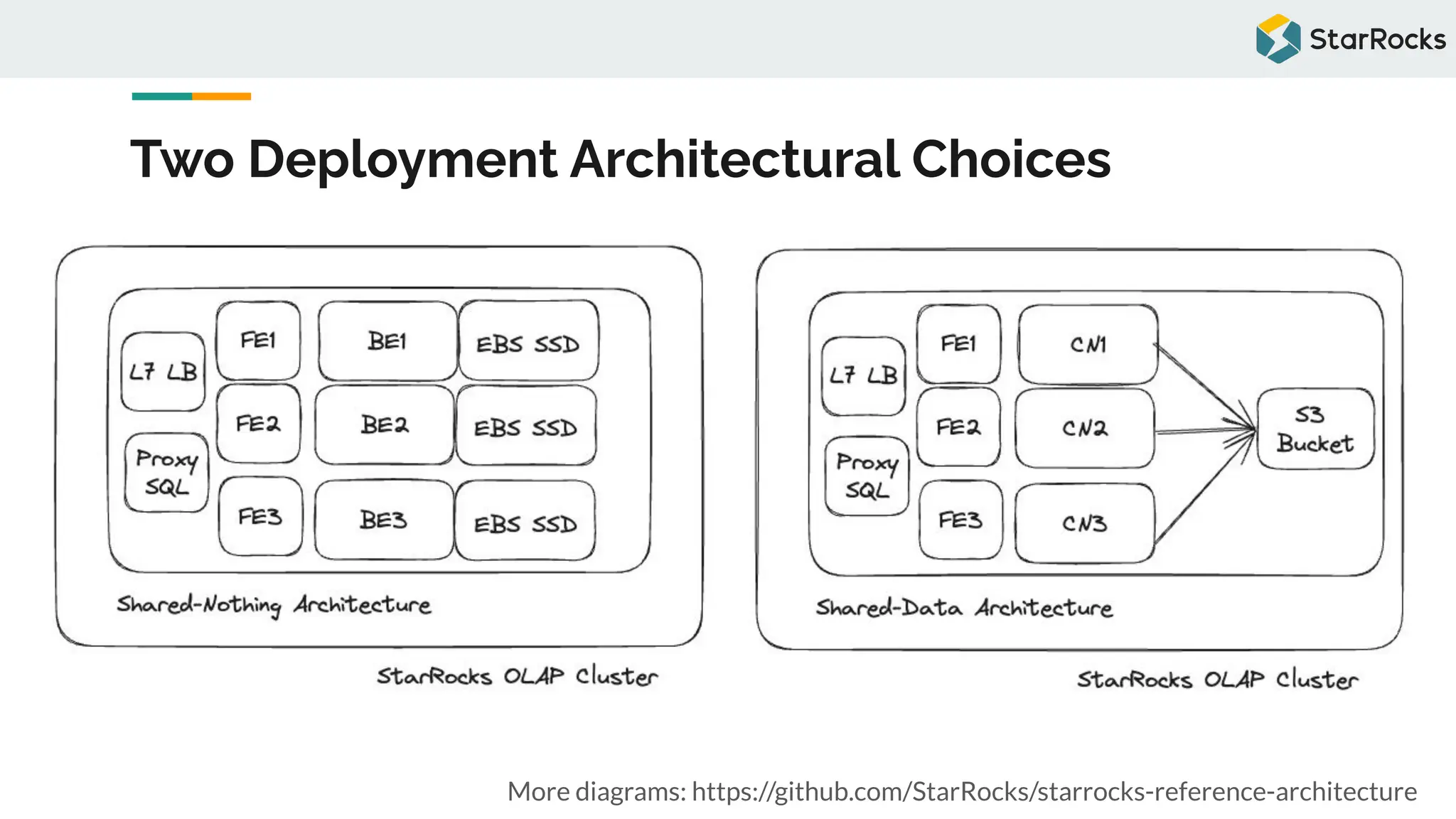

Two Deployment Architectural Choices

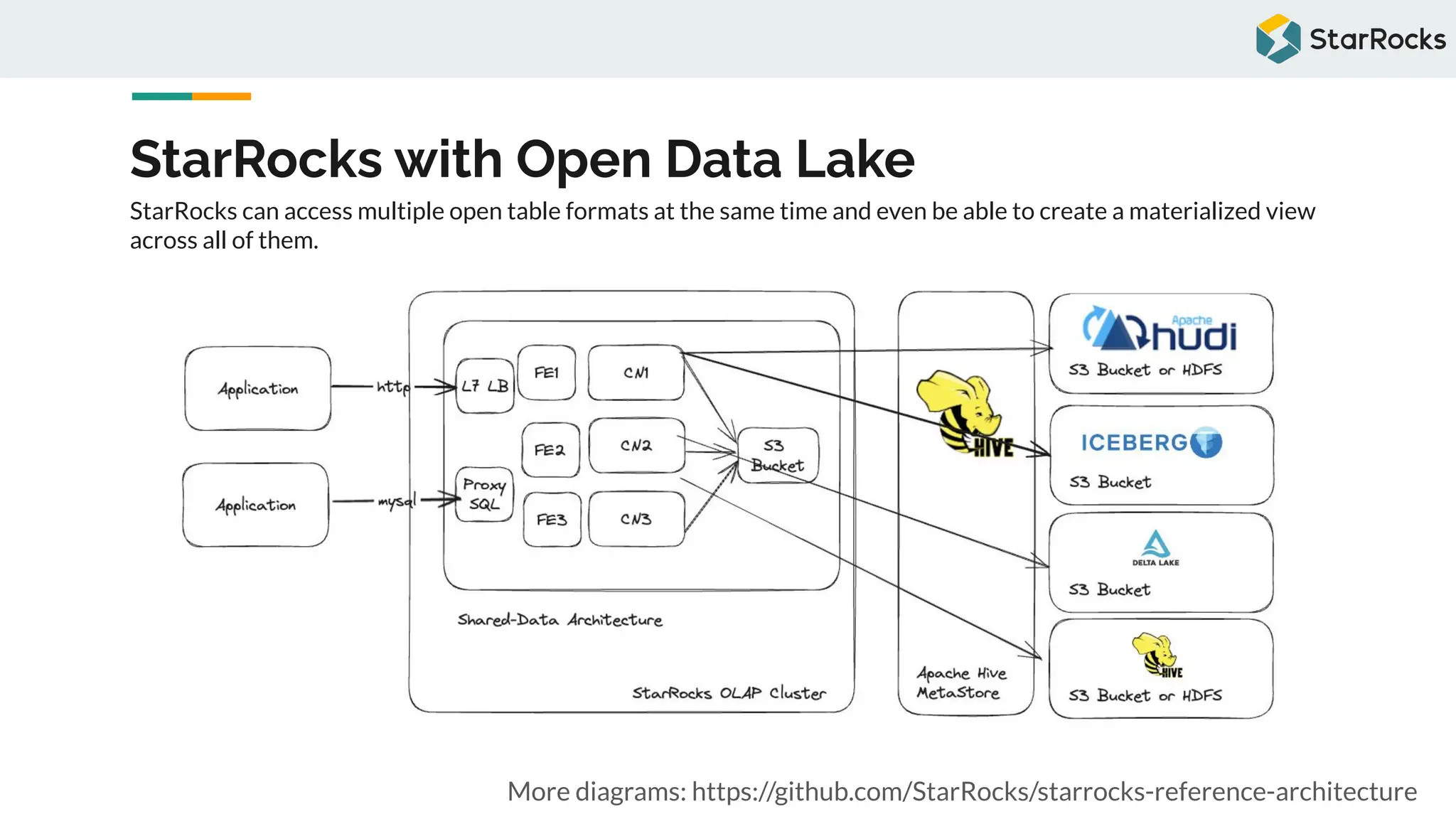

StarRocks with Open Data Lake
StarRocks can access multiple open table formats at the same time and even be able to create a materialized view
across all of them.

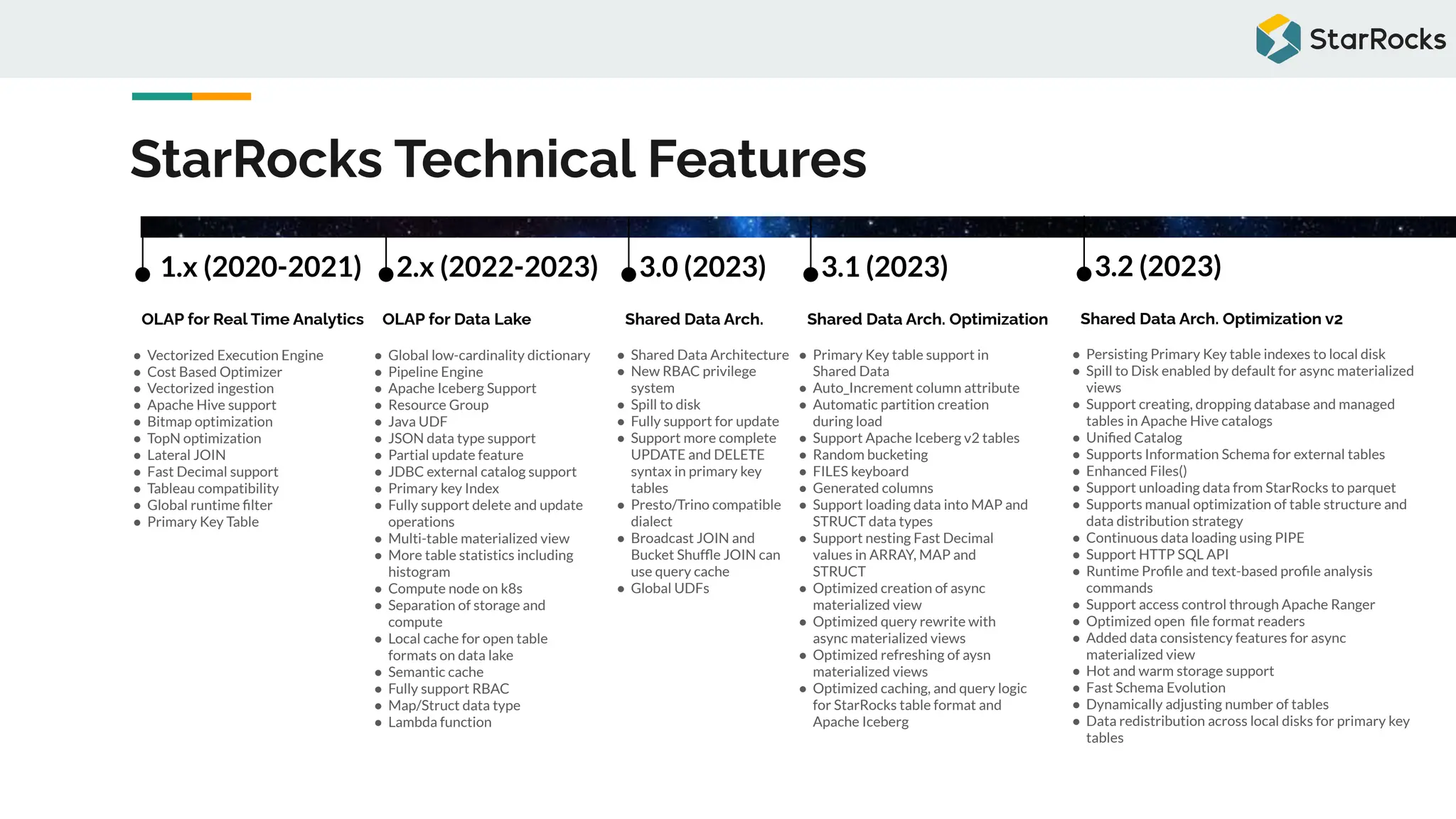

StarRocks Technical Features
1.x (2020-2021)
OLAP for Real Time Analytics OLAP for Data Lake
● Global low-cardinality dictionary
● Pipeline Engine
● Apache Iceberg Support
● Resource Group
● Java UDF
● JSON data type support
● Partial update feature
● JDBC external catalog support
● Primary key Index
● Fully support delete and update
operations
● Multi-table materialized view
● More table statistics including
histogram
● Compute node on k8s
● Separation of storage and
compute
● Local cache for open table
formats on data lake
● Semantic cache
● Fully support RBAC
● Map/Struct data type
● Lambda function
● Vectorized Execution Engine
● Cost Based Optimizer
● Vectorized ingestion
● Apache Hive support
● Bitmap optimization
● TopN optimization
● Lateral JOIN
● Fast Decimal support
● Tableau compatibility
● Global runtime filter
● Primary Key Table
2.x (2022-2023)
Shared Data Arch. Optimization
● Primary Key table support in
Shared Data
● Auto_Increment column attribute
● Automatic partition creation
during load
● Support Apache Iceberg v2 tables
● Random bucketing
● FILES keyboard
● Generated columns
● Support loading data into MAP and
STRUCT data types
● Support nesting Fast Decimal
values in ARRAY, MAP and
STRUCT
● Optimized creation of async
materialized view
● Optimized query rewrite with
async materialized views
● Optimized refreshing of aysn
materialized views
● Optimized caching, and query logic
for StarRocks table format and
Apache Iceberg
3.1 (2023)
Shared Data Arch. Optimization v2
● Persisting Primary Key table indexes to local disk
● Spill to Disk enabled by default for async materialized
views
● Support creating, dropping database and managed
tables in Apache Hive catalogs
● Unified Catalog
● Supports Information Schema for external tables
● Enhanced Files()
● Support unloading data from StarRocks to parquet
● Supports manual optimization of table structure and
data distribution strategy
● Continuous data loading using PIPE
● Support HTTP SQL API
● Runtime Profile and text-based profile analysis
commands
● Support access control through Apache Ranger
● Optimized open file format readers
● Added data consistency features for async
materialized view
● Hot and warm storage support
● Fast Schema Evolution
● Dynamically adjusting number of tables
● Data redistribution across local disks for primary key
tables
3.2 (2023)
Shared Data Arch.
● Shared Data Architecture
● New RBAC privilege
system
● Spill to disk
● Fully support for update
● Support more complete
UPDATE and DELETE
syntax in primary key
tables
● Presto/Trino compatible
dialect
● Broadcast JOIN and
Bucket Shuffle JOIN can
use query cache
● Global UDFs
3.0 (2023)

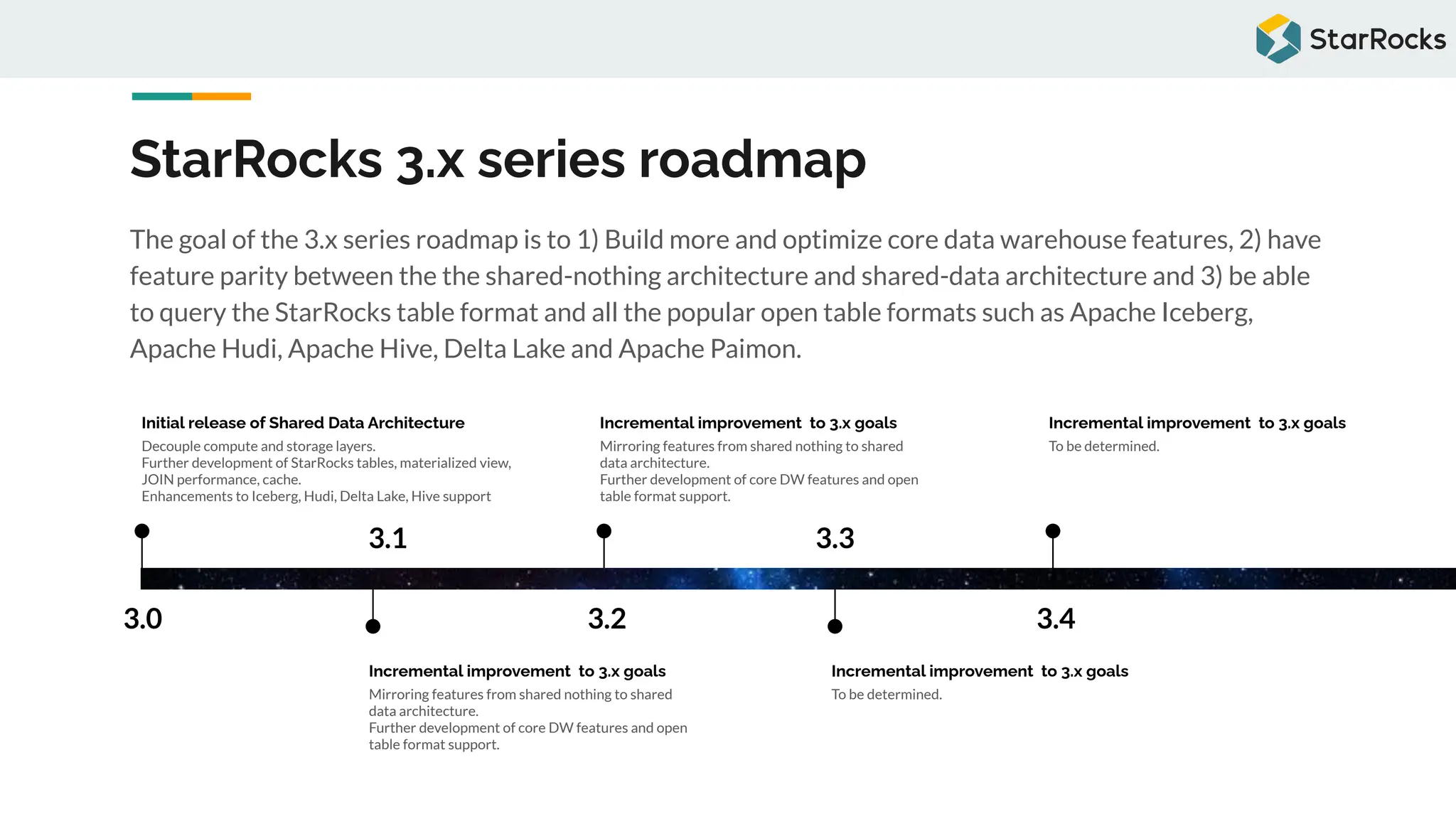

StarRocks 3.x series roadmap
The goal of the 3.x series roadmap is to 1) Build more and optimize core data warehouse features, 2) have
feature parity between the the shared-nothing architecture and shared-data architecture and 3) be able
to query the StarRocks table format and all the popular open table formats such as Apache Iceberg,
Apache Hudi, Apache Hive, Delta Lake and Apache Paimon.
3.0
Initial release of Shared Data Architecture
Decouple compute and storage layers.
Further development of StarRocks tables, materialized view,
JOIN performance, cache.
Enhancements to Iceberg, Hudi, Delta Lake, Hive support
3.1
Incremental improvement to 3.x goals
Mirroring features from shared nothing to shared
data architecture.
Further development of core DW features and open
table format support.
3.2
Mirroring features from shared nothing to shared
data architecture.
Further development of core DW features and open
table format support.
3.3
To be determined.
3.4
To be determined.

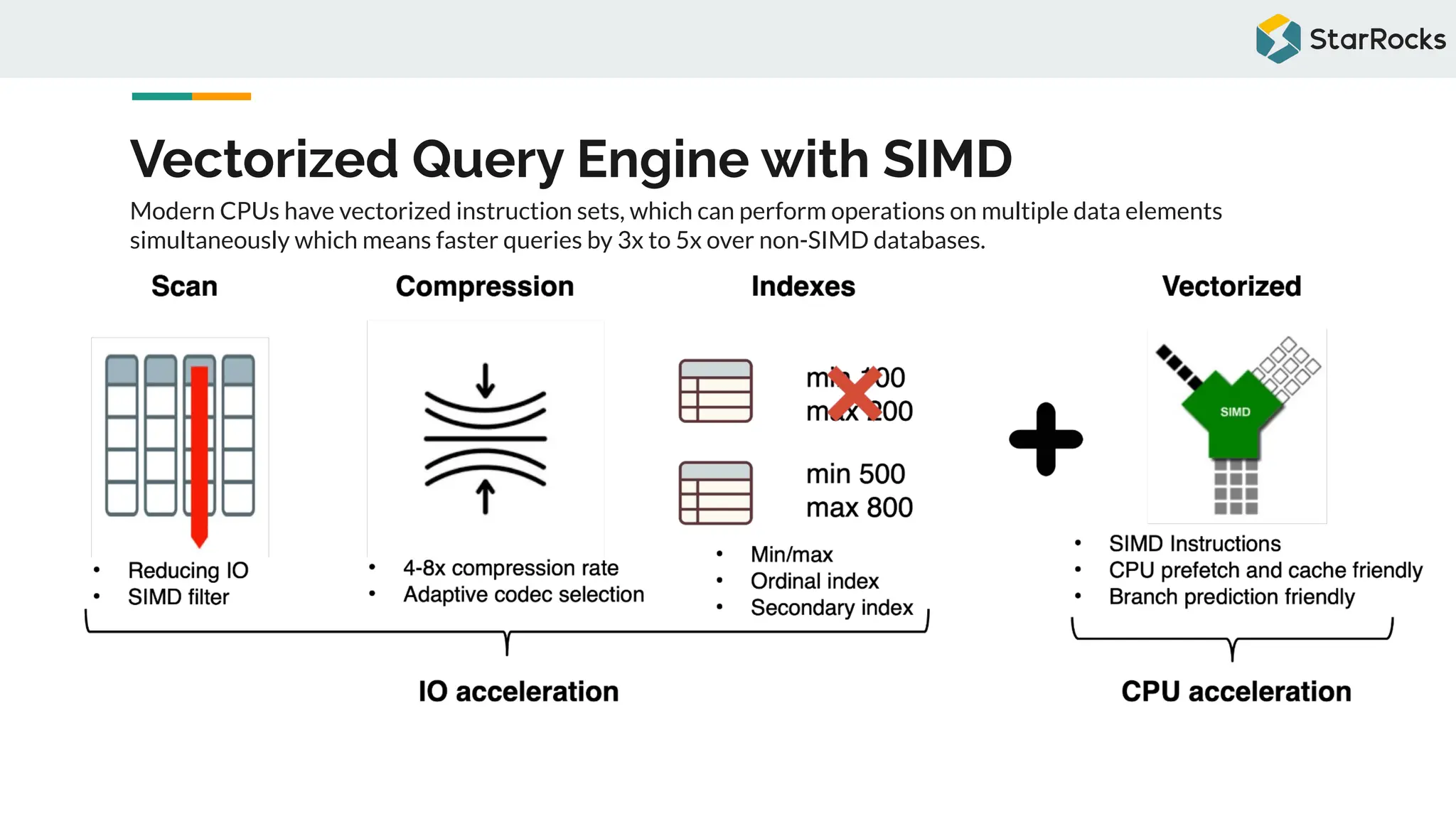

Vectorized Query Engine with SIMD
Modern CPUs have vectorized instruction sets, which can perform operations on multiple data elements
simultaneously which means faster queries by 3x to 5x over non-SIMD databases.

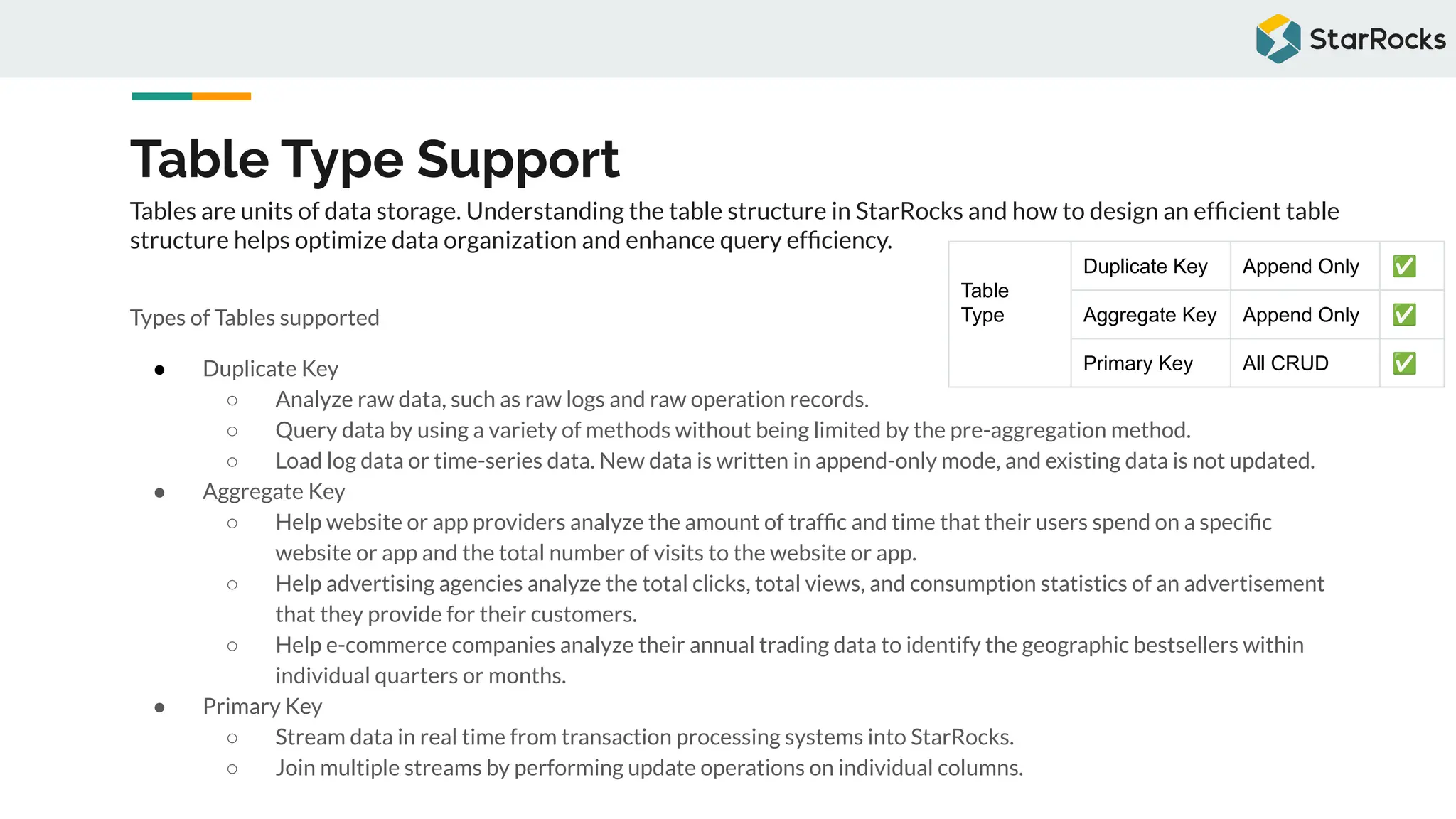

Table Type Support
Types of Tables supported
● Duplicate Key
○ Analyze raw data, such as raw logs and raw operation records.
○ Query data by using a variety of methods without being limited by the pre-aggregation method.
○ Load log data or time-series data. New data is written in append-only mode, and existing data is not updated.
● Aggregate Key
○ Help website or app providers analyze the amount of traffic and time that their users spend on a specific
website or app and the total number of visits to the website or app.
○ Help advertising agencies analyze the total clicks, total views, and consumption statistics of an advertisement
that they provide for their customers.
○ Help e-commerce companies analyze their annual trading data to identify the geographic bestsellers within
individual quarters or months.
● Primary Key
○ Stream data in real time from transaction processing systems into StarRocks.
○ Join multiple streams by performing update operations on individual columns.
Tables are units of data storage. Understanding the table structure in StarRocks and how to design an efficient table
structure helps optimize data organization and enhance query efficiency.
Table
Type
Duplicate Key Append Only ✅
Aggregate Key Append Only ✅
Primary Key All CRUD ✅

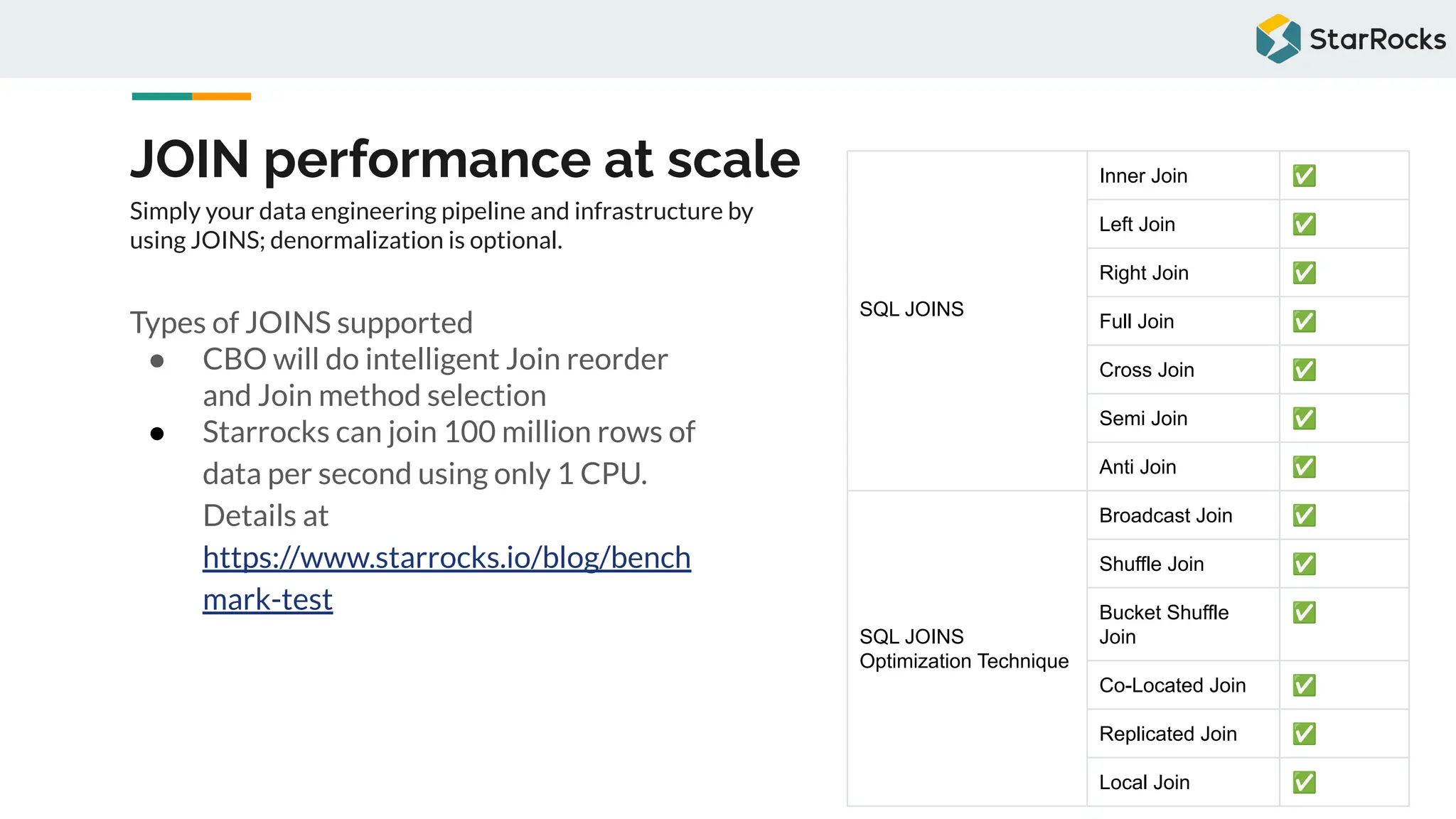

JOIN performance at scale
Types of JOINS supported
● CBO will do intelligent Join reorder
and Join method selection
● Starrocks can join 100 million rows of
data per second using only 1 CPU.
Details at
https://www.starrocks.io/blog/bench
mark-test
Simply your data engineering pipeline and infrastructure by
using JOINS; denormalization is optional.
SQL JOINS
Inner Join ✅
Left Join ✅
Right Join ✅
Full Join ✅
Cross Join ✅
Semi Join ✅
Anti Join ✅
SQL JOINS
Optimization Technique
Broadcast Join ✅
Shuffle Join ✅
Bucket Shuffle
Join
✅
Co-Located Join ✅
Replicated Join ✅
Local Join ✅

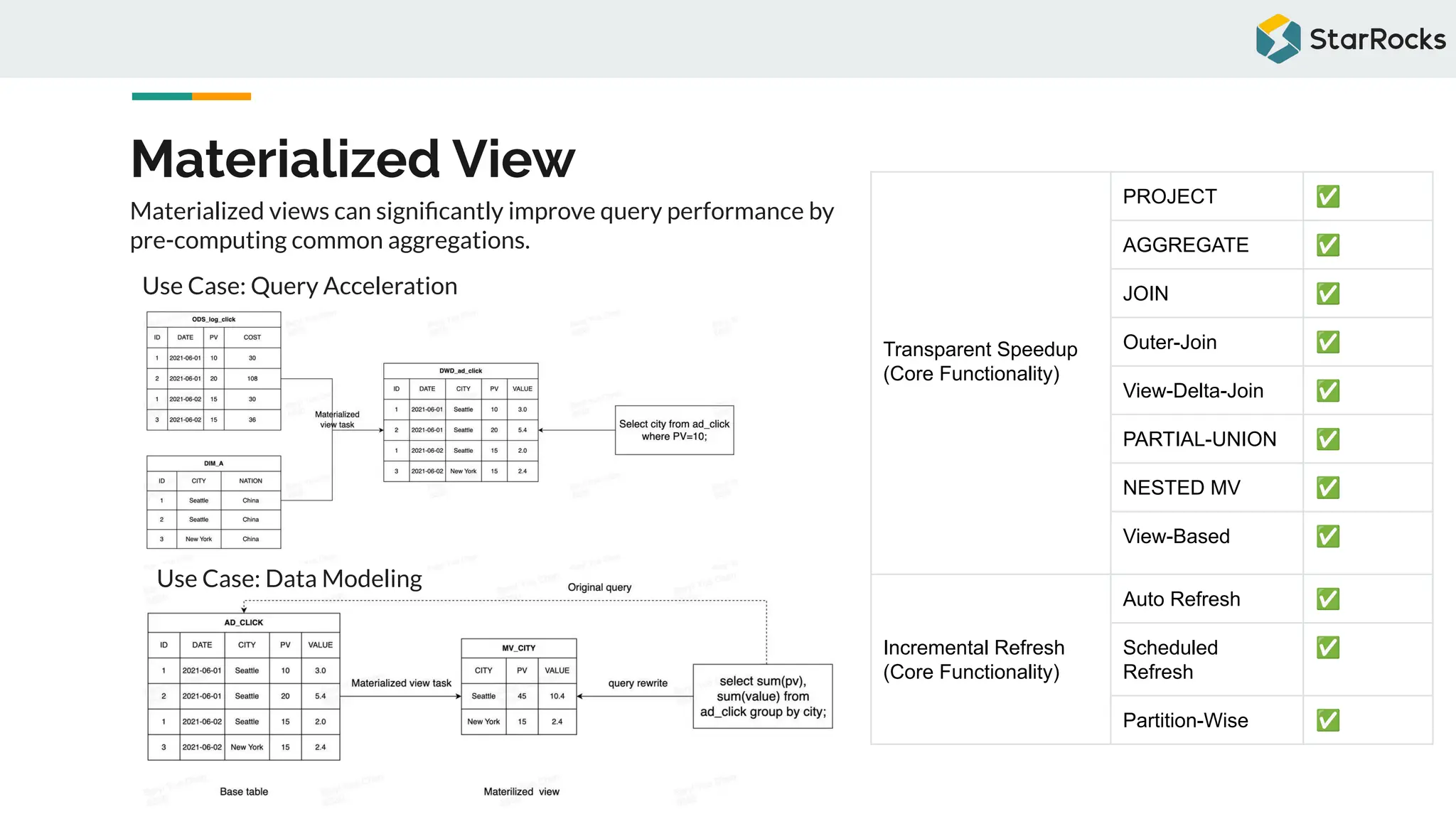

Materialized View
Transparent Speedup
(Core Functionality)
PROJECT ✅
AGGREGATE ✅
JOIN ✅
Outer-Join ✅
View-Delta-Join ✅
PARTIAL-UNION ✅
NESTED MV ✅
View-Based ✅
Incremental Refresh
(Core Functionality)
Auto Refresh ✅
Scheduled
Refresh
✅
Partition-Wise ✅
Materialized views can signiﬁcantly improve query performance by
pre-computing common aggregations.
Use Case: Query Acceleration
Use Case: Data Modeling

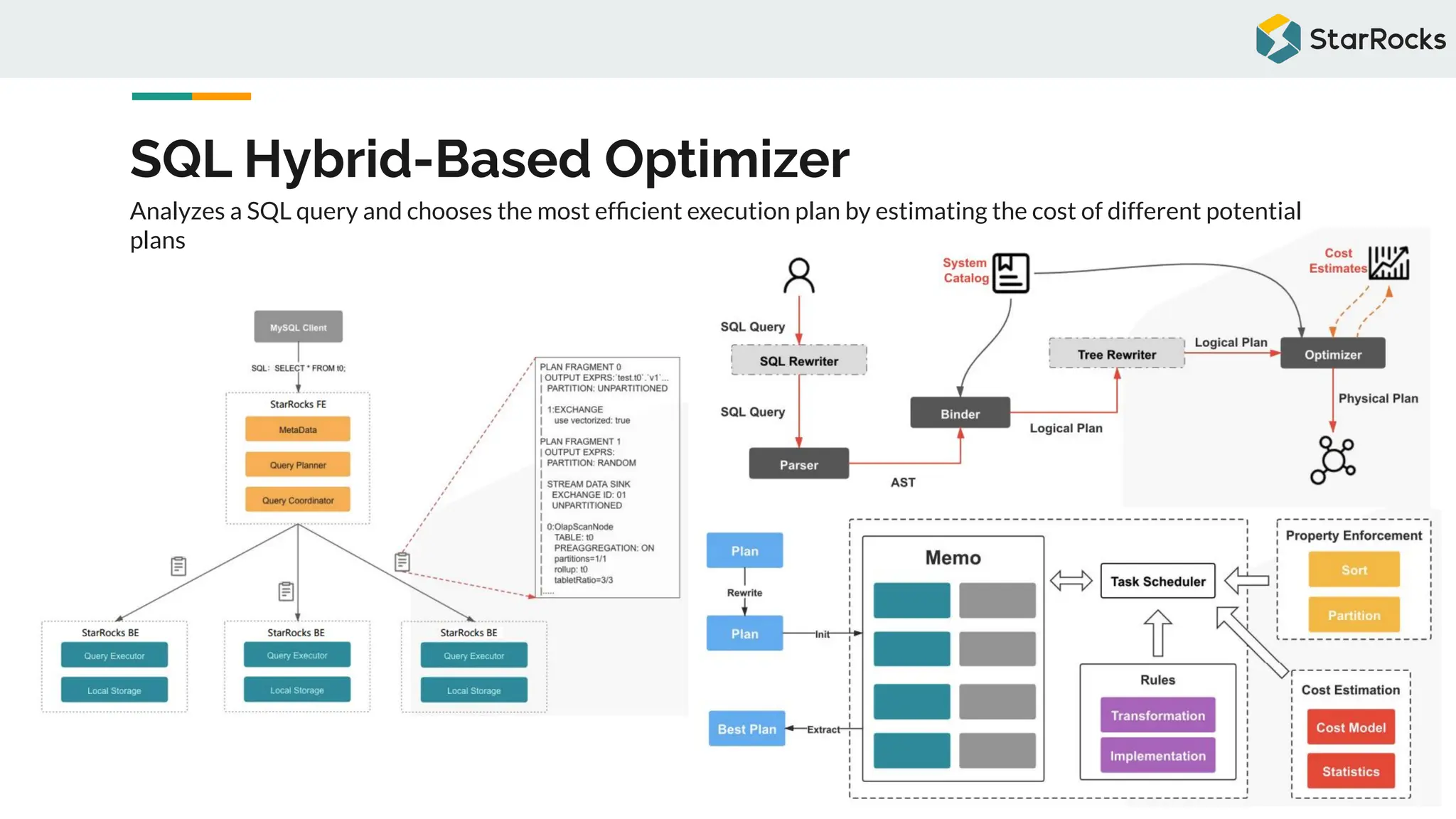

SQL Hybrid-Based Optimizer
Analyzes a SQL query and chooses the most efﬁcient execution plan by estimating the cost of different potential
plans

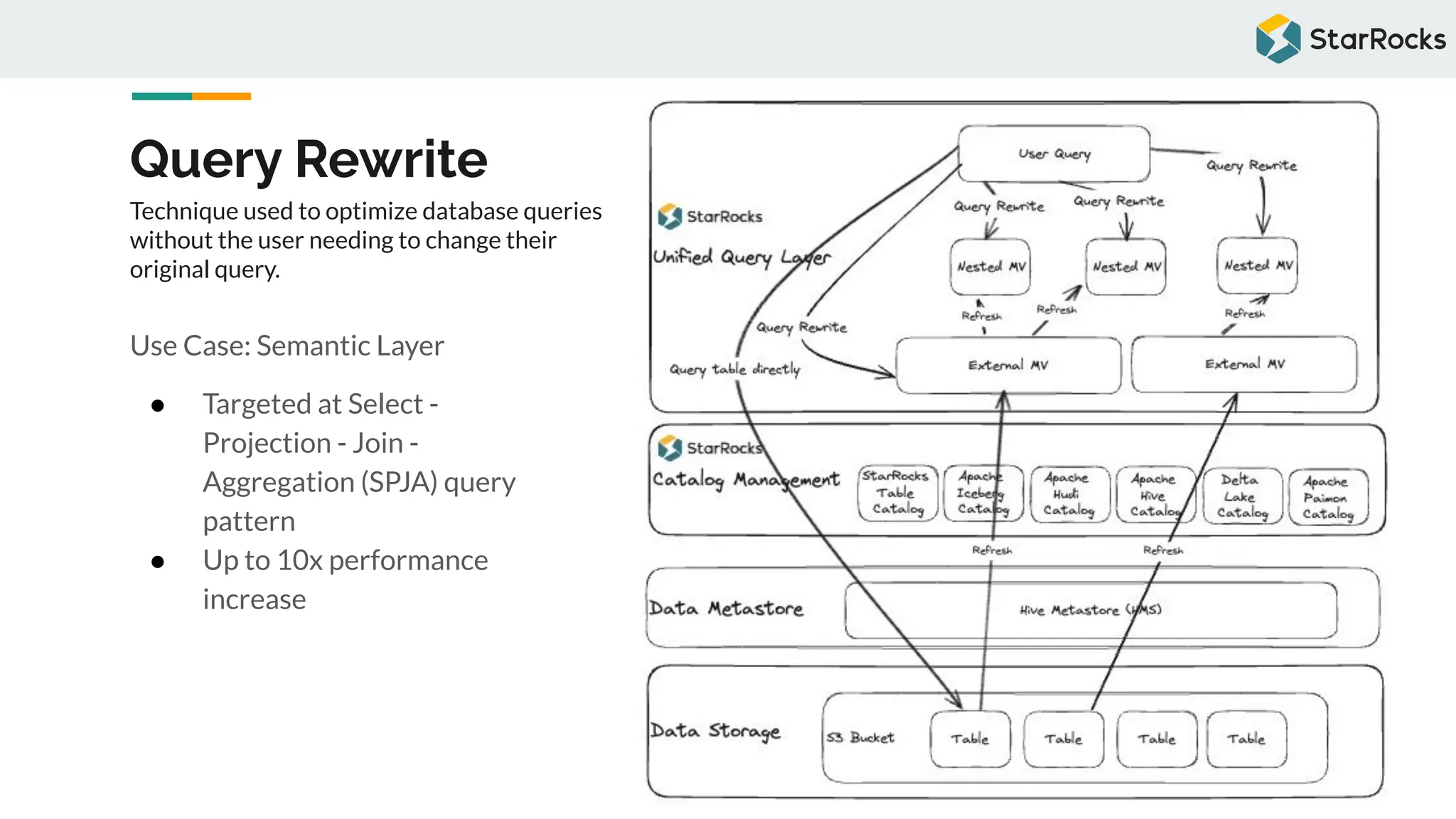

Query Rewrite
Technique used to optimize database queries
without the user needing to change their
original query.
Use Case: Semantic Layer
● Targeted at Select -
Projection - Join -
Aggregation (SPJA) query
pattern
● Up to 10x performance
increase

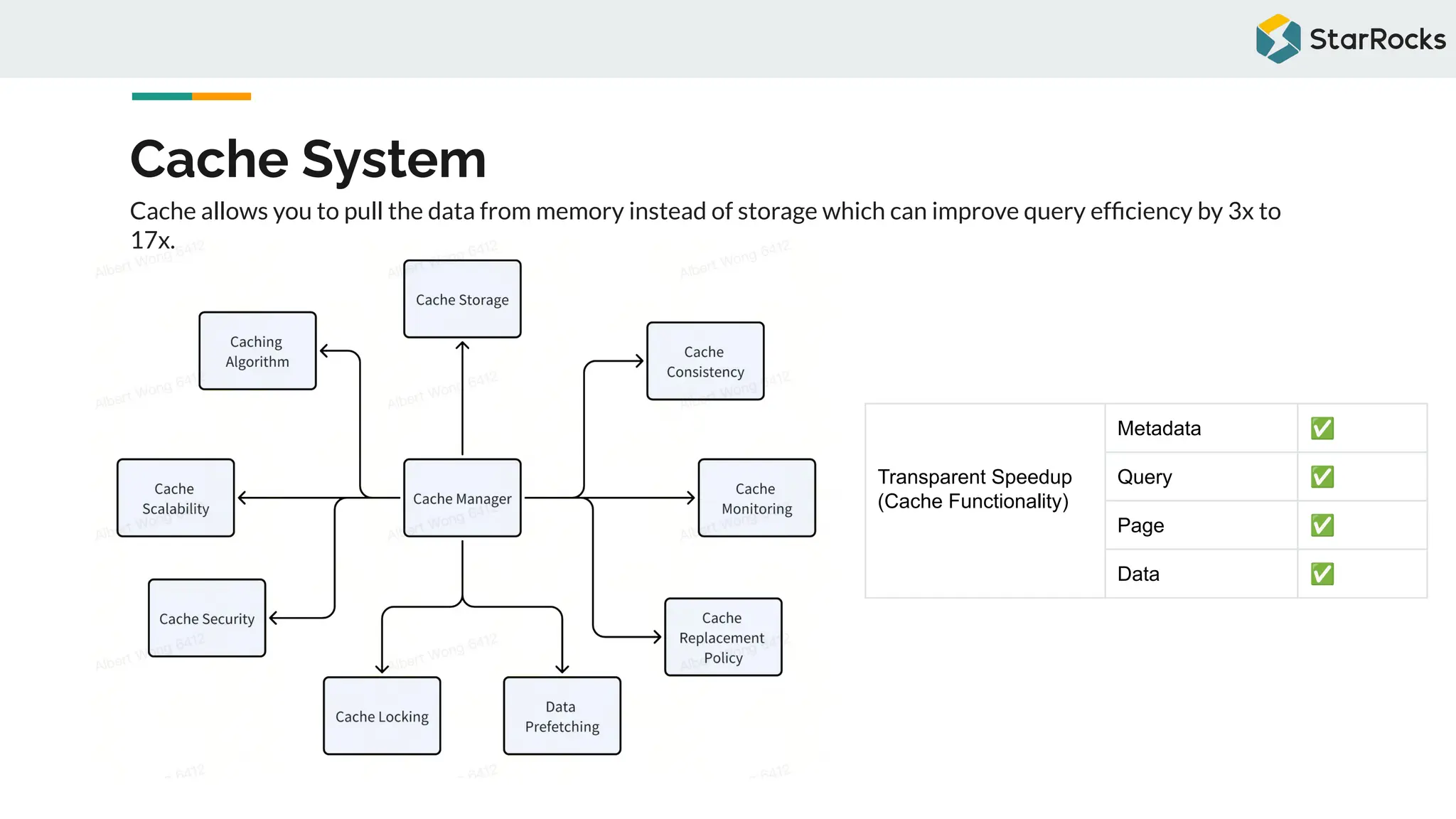

Cache System
Cache allows you to pull the data from memory instead of storage which can improve query efﬁciency by 3x to
17x.
Transparent Speedup
(Cache Functionality)
Metadata ✅
Query ✅
Page ✅
Data ✅

Separated compute and storage architecture
Design approach for databases and data platforms that decouples the processing power (compute) from the
data storage layer.

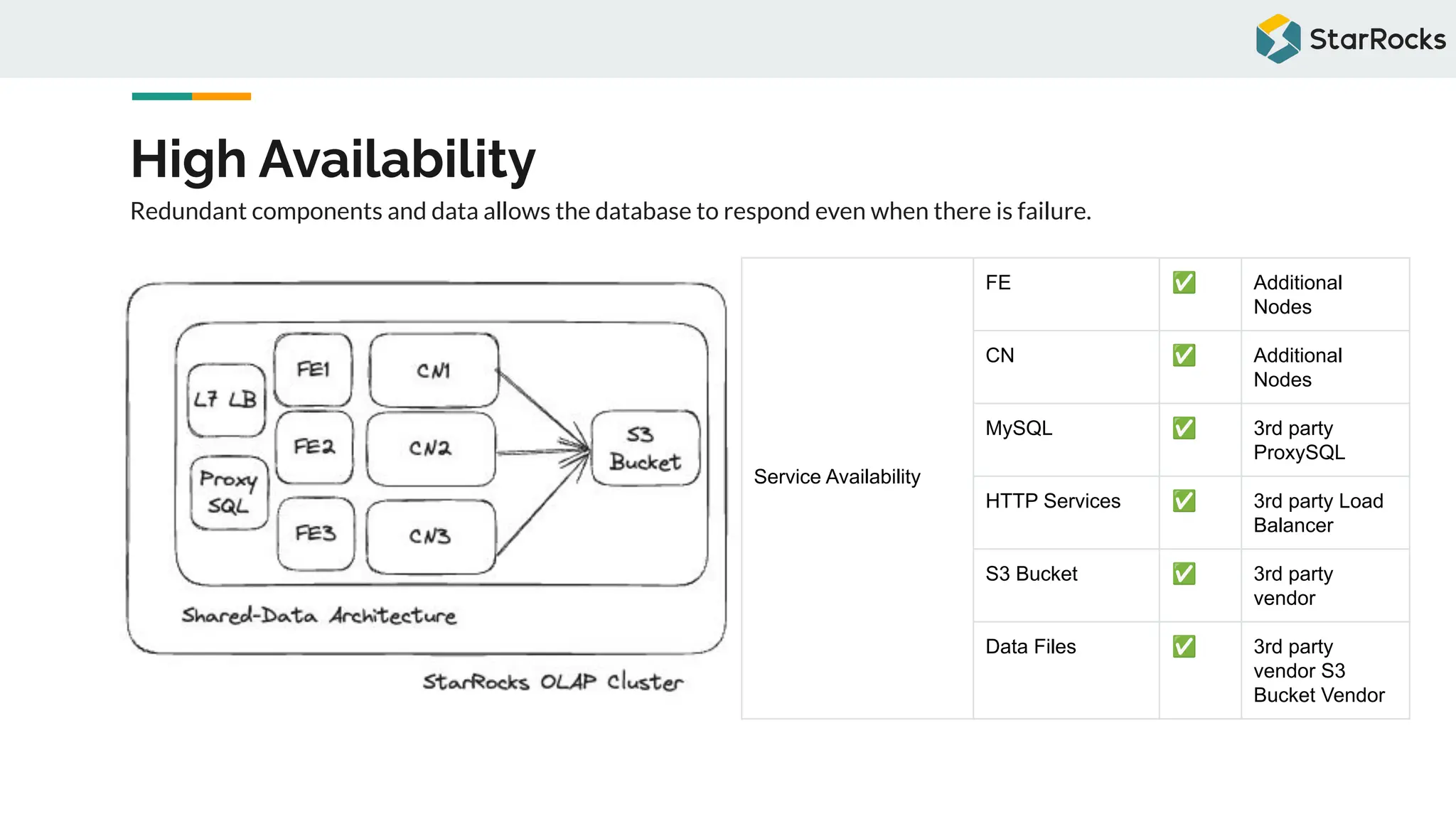

High Availability
Redundant components and data allows the database to respond even when there is failure.
Service Availability
FE ✅ Additional
Nodes
CN ✅ Additional
Nodes
MySQL ✅ 3rd party
ProxySQL
HTTP Services ✅ 3rd party Load
Balancer
S3 Bucket ✅ 3rd party
vendor
Data Files ✅ 3rd party
vendor S3
Bucket Vendor

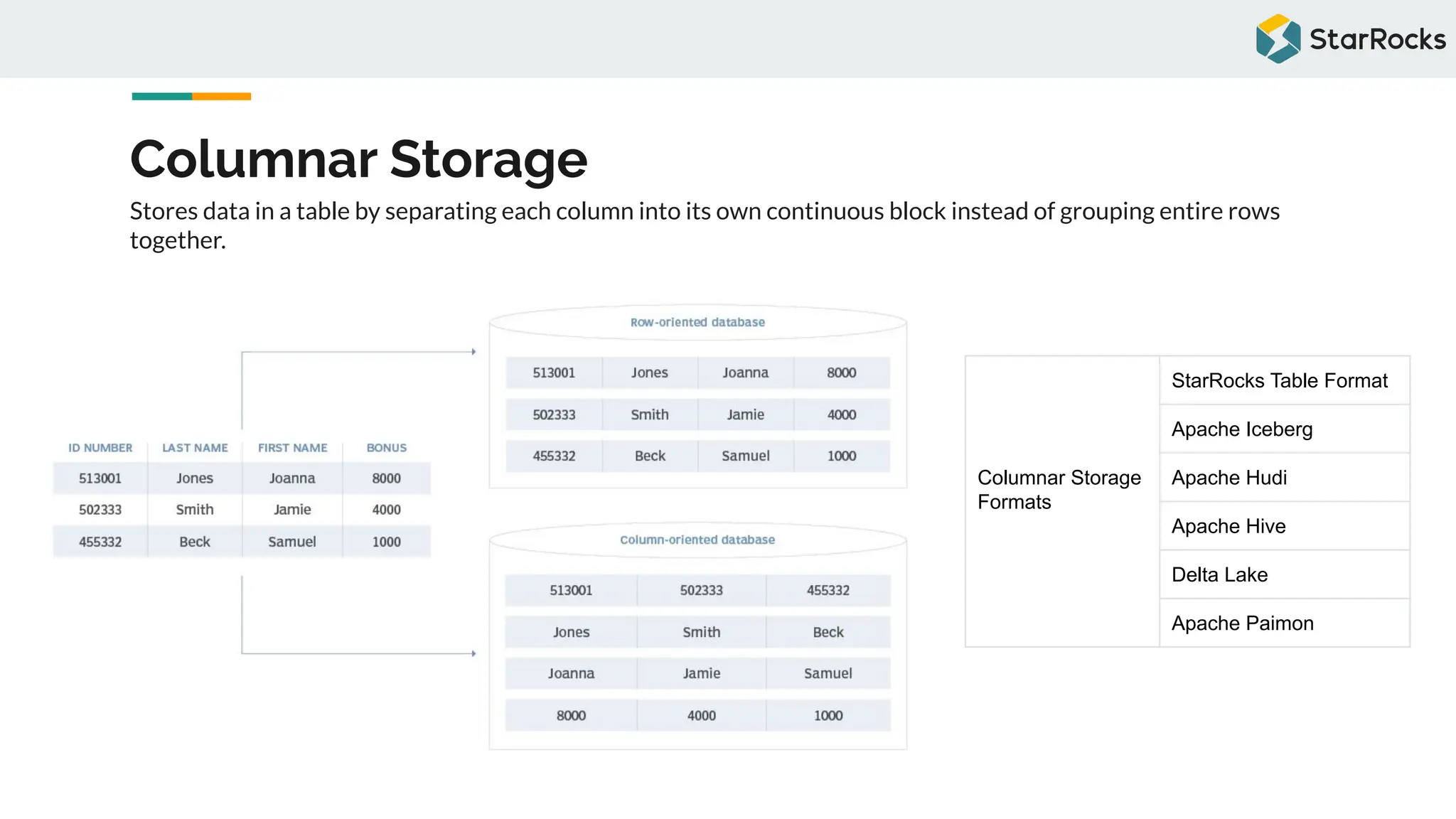

Columnar Storage
Stores data in a table by separating each column into its own continuous block instead of grouping entire rows
together.
Columnar Storage
Formats
StarRocks Table Format
Apache Iceberg
Apache Hudi
Apache Hive
Delta Lake
Apache Paimon

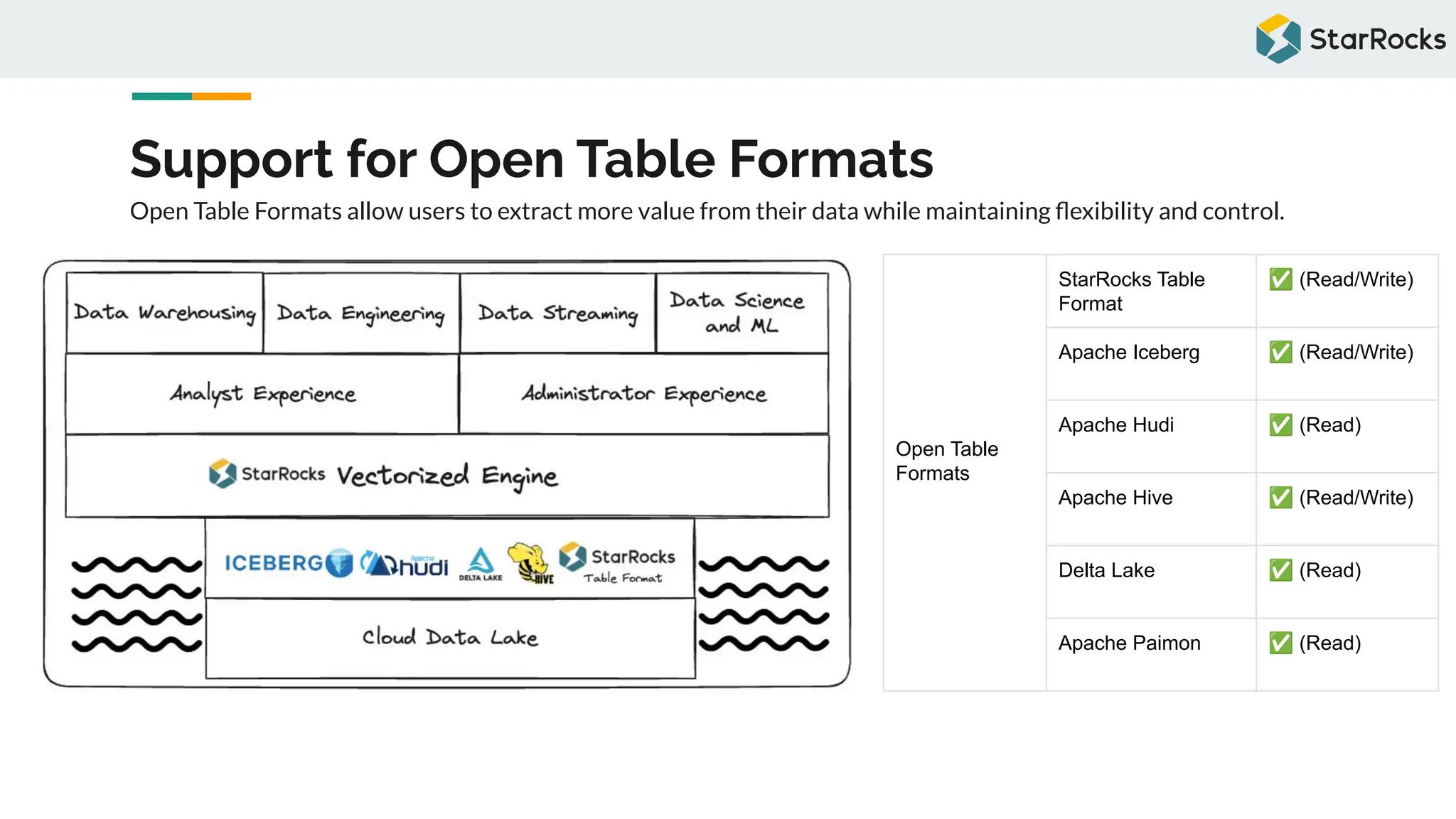

Support for Open Table Formats
Open Table Formats allow users to extract more value from their data while maintaining ﬂexibility and control.
Open Table
Formats
StarRocks Table
Format
✅ (Read/Write)
Apache Iceberg ✅ (Read/Write)
Apache Hudi ✅ (Read)
Apache Hive ✅ (Read/Write)
Delta Lake ✅ (Read)
Apache Paimon ✅ (Read)

SQL Connectivity through MySQL wire protocol
support with Trino dialect
Communicate with StarRocks through MySQL statements and utilities. Also understands the Trino SQL
dialect.
Client Server

Benchmarks
and
Community References

Benchmark StarRocks Offers 2.2x Performance over ClickHouse and 8.9x
Performance over Apache Druid® in Wide-table Scenarios Out
of the Box using product native table format.

Benchmark StarRocks Delivers 5.54x Query Performance over Trino in
Multi-table Scenarios using Apache Iceberg table format with
Parquet ﬁles.

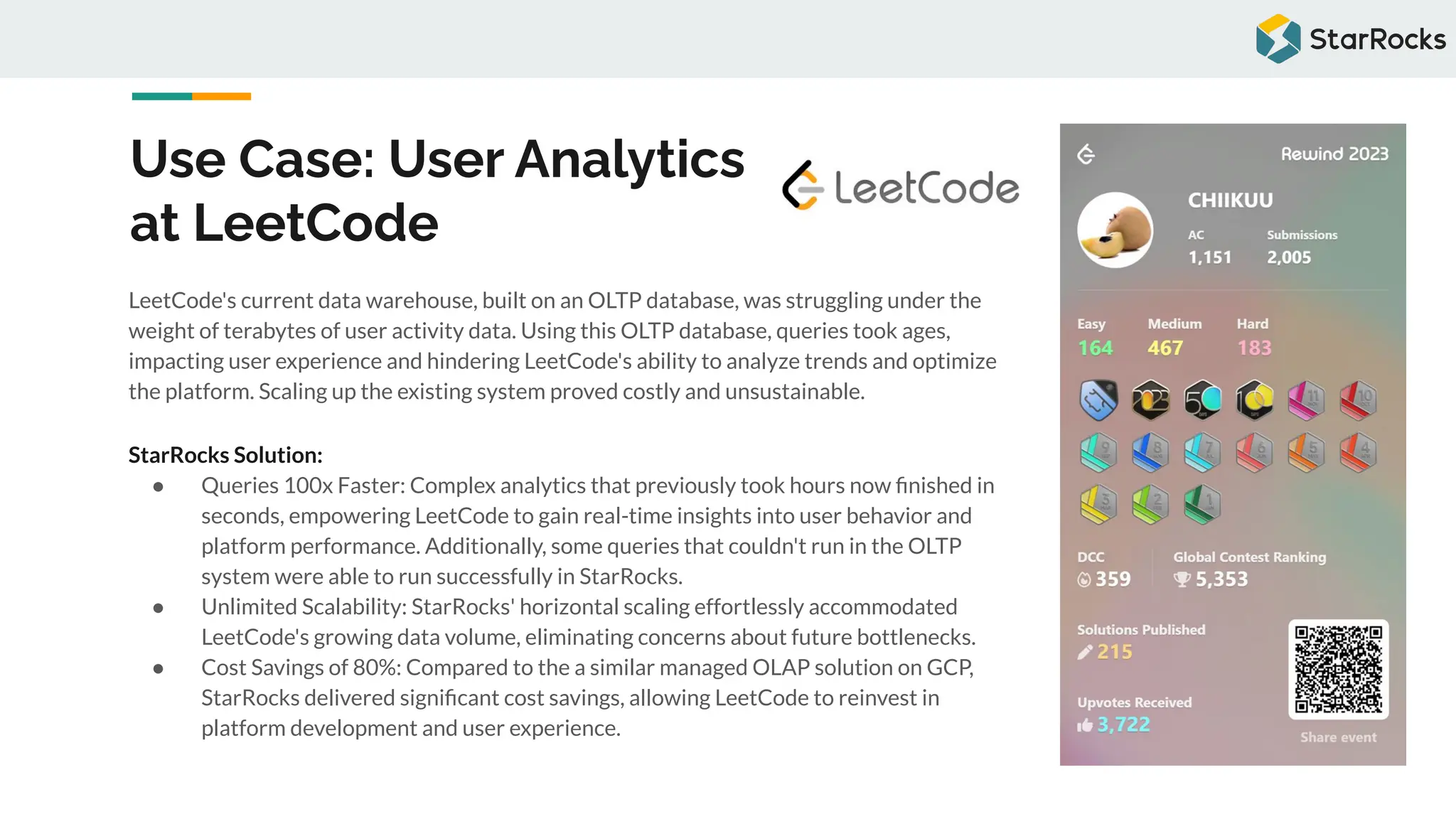

Use Case: User Analytics
at LeetCode
LeetCode's current data warehouse, built on an OLTP database, was struggling under the
weight of terabytes of user activity data. Using this OLTP database, queries took ages,
impacting user experience and hindering LeetCode's ability to analyze trends and optimize
the platform. Scaling up the existing system proved costly and unsustainable.
StarRocks Solution:
● Queries 100x Faster: Complex analytics that previously took hours now ﬁnished in
seconds, empowering LeetCode to gain real-time insights into user behavior and
platform performance. Additionally, some queries that couldn't run in the OLTP
system were able to run successfully in StarRocks.
● Unlimited Scalability: StarRocks' horizontal scaling effortlessly accommodated
LeetCode's growing data volume, eliminating concerns about future bottlenecks.
● Cost Savings of 80%: Compared to the a similar managed OLAP solution on GCP,
StarRocks delivered signiﬁcant cost savings, allowing LeetCode to reinvest in
platform development and user experience.

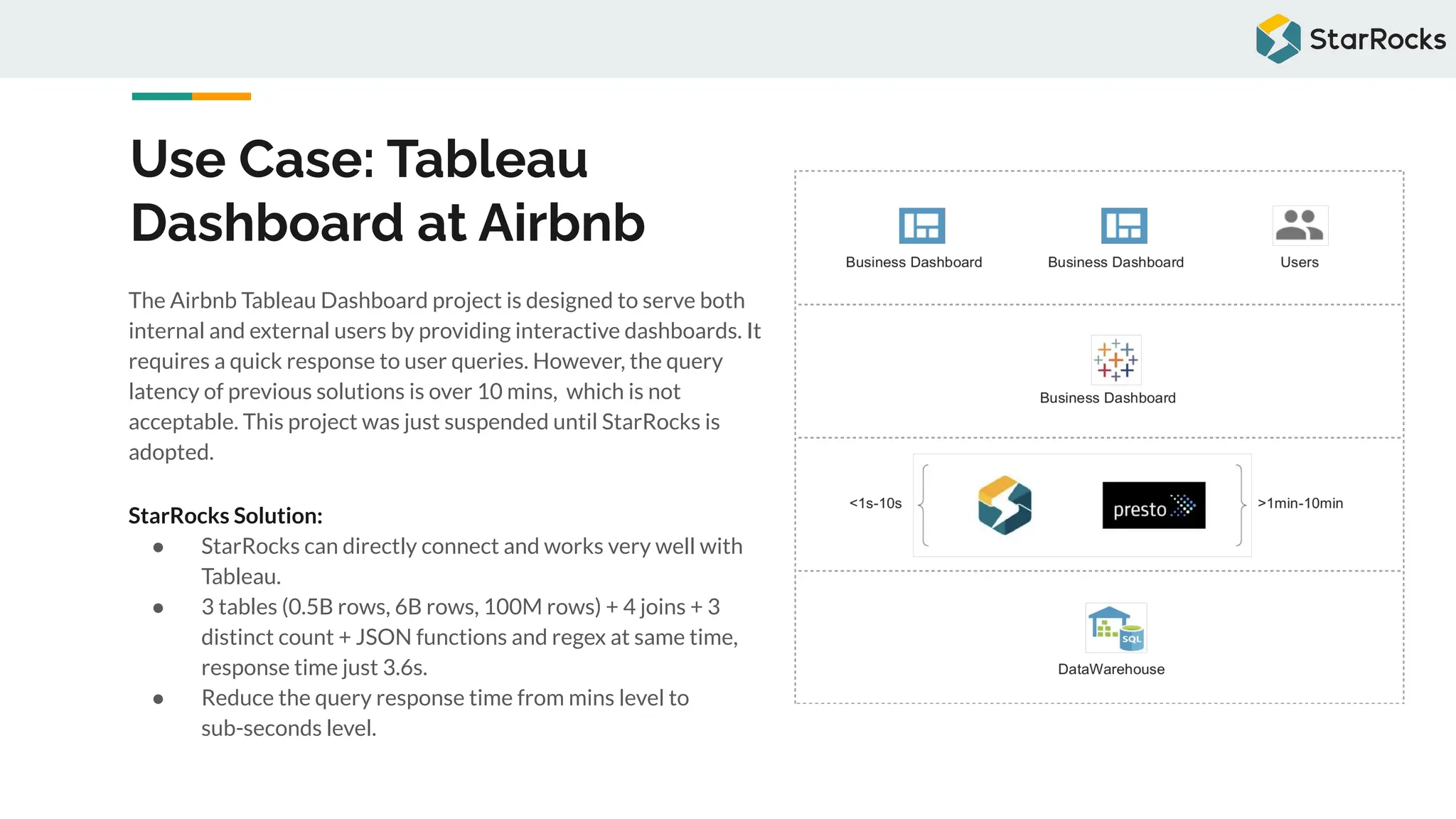

Use Case: Tableau
Dashboard at Airbnb
The Airbnb Tableau Dashboard project is designed to serve both
internal and external users by providing interactive dashboards. It
requires a quick response to user queries. However, the query
latency of previous solutions is over 10 mins, which is not
acceptable. This project was just suspended until StarRocks is
adopted.
StarRocks Solution:
● StarRocks can directly connect and works very well with
Tableau.
● 3 tables (0.5B rows, 6B rows, 100M rows) + 4 joins + 3
distinct count + JSON functions and regex at same time,
response time just 3.6s.
● Reduce the query response time from mins level to
sub-seconds level.

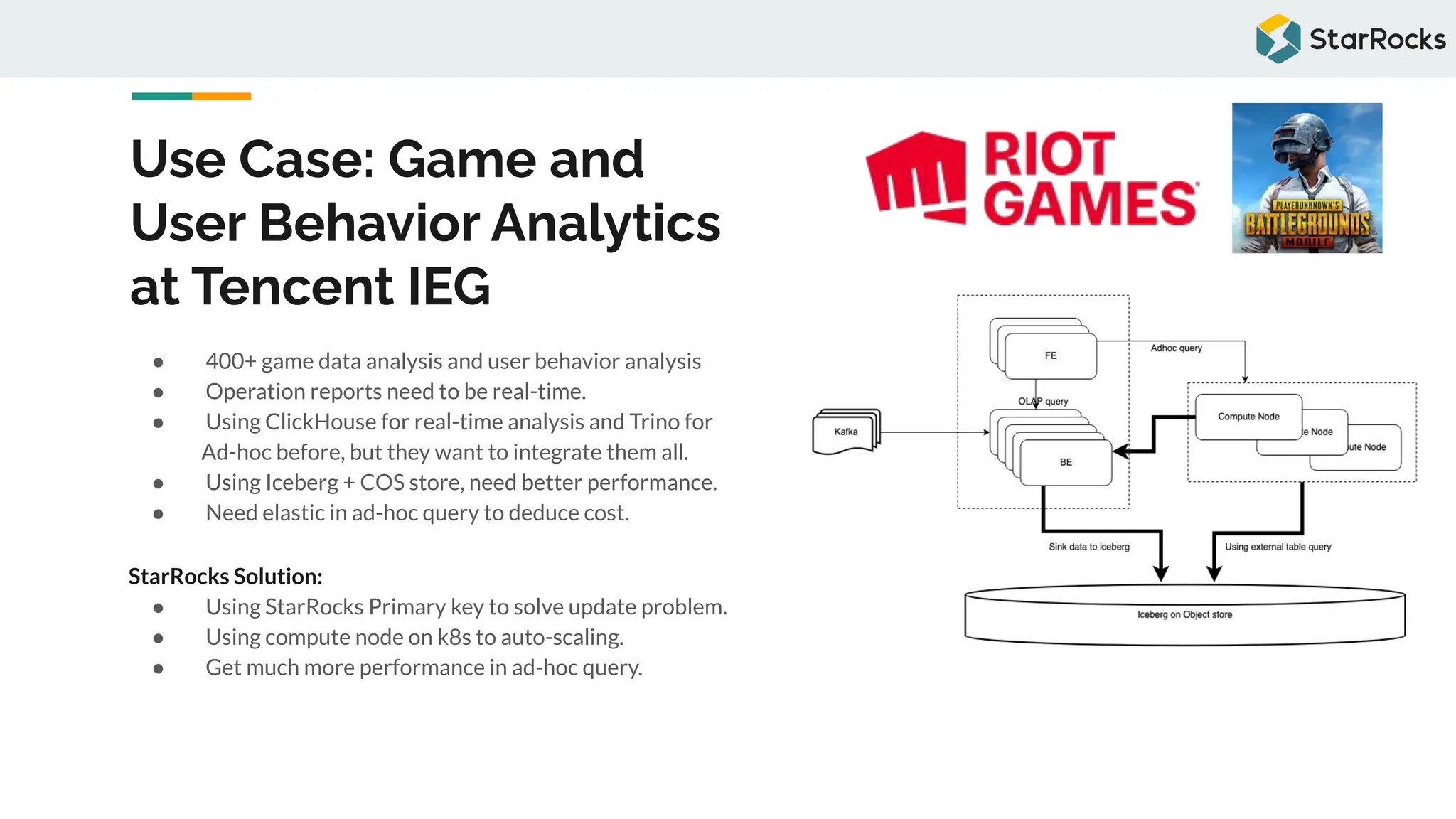

Use Case: Game and
User Behavior Analytics
at Tencent IEG
● 400+ game data analysis and user behavior analysis
● Operation reports need to be real-time.
● Using ClickHouse for real-time analysis and Trino for
Ad-hoc before, but they want to integrate them all.
● Using Iceberg + COS store, need better performance.
● Need elastic in ad-hoc query to deduce cost.
StarRocks Solution:
● Using StarRocks Primary key to solve update problem.
● Using compute node on k8s to auto-scaling.
● Get much more performance in ad-hoc query.

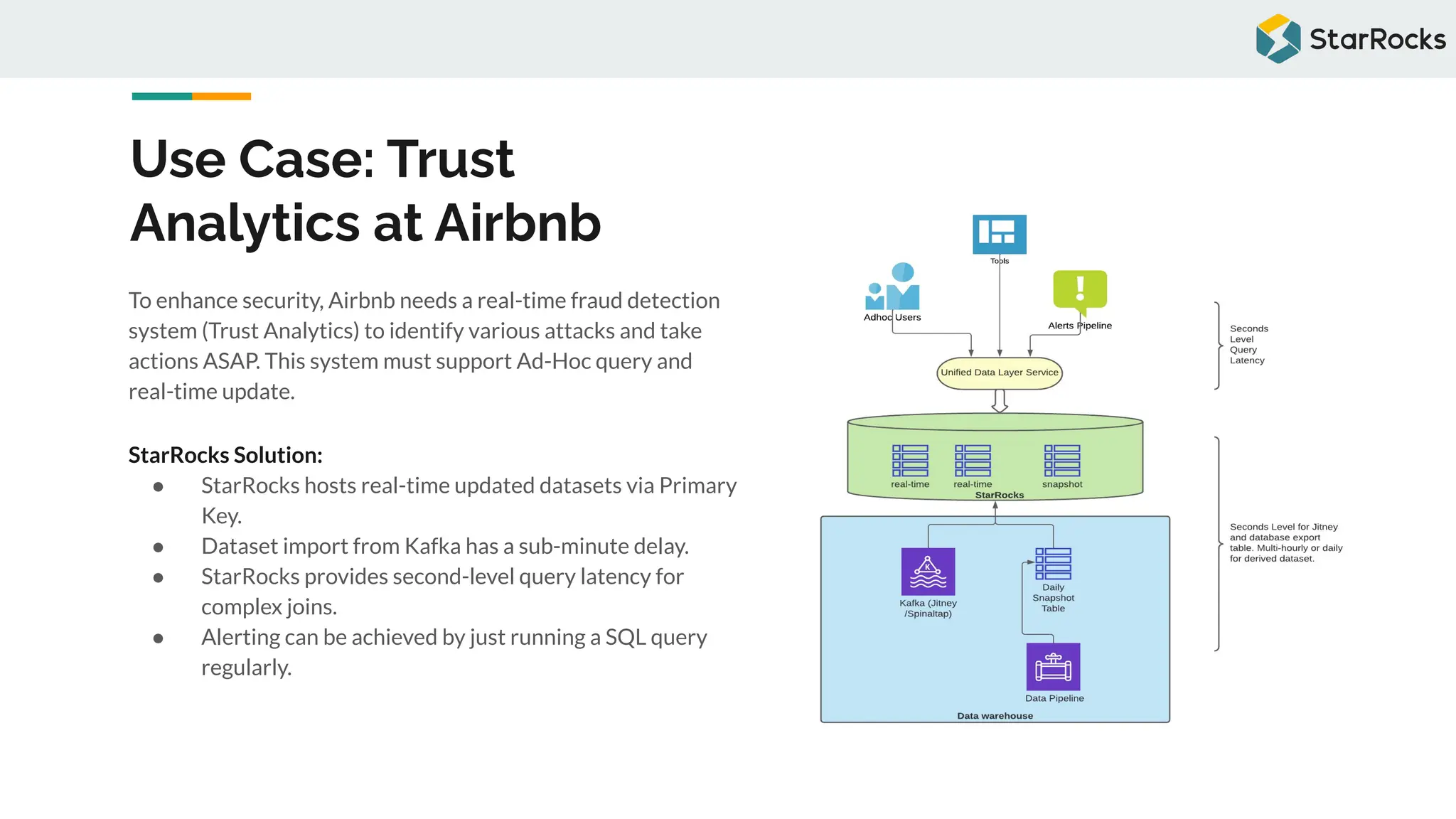

Use Case: Trust
Analytics at Airbnb
To enhance security, Airbnb needs a real-time fraud detection
system (Trust Analytics) to identify various attacks and take
actions ASAP. This system must support Ad-Hoc query and
real-time update.
StarRocks Solution:
● StarRocks hosts real-time updated datasets via Primary
Key.
● Dataset import from Kafka has a sub-minute delay.
● StarRocks provides second-level query latency for
complex joins.
● Alerting can be achieved by just running a SQL query
regularly.

Thank you.
● Community starrocks.io
● Enterprise celerdata.com
● Managed Service cloud.celerdata.com

Credits
● This presentation is using images from Flaticon.com

Architectural Patterns
and

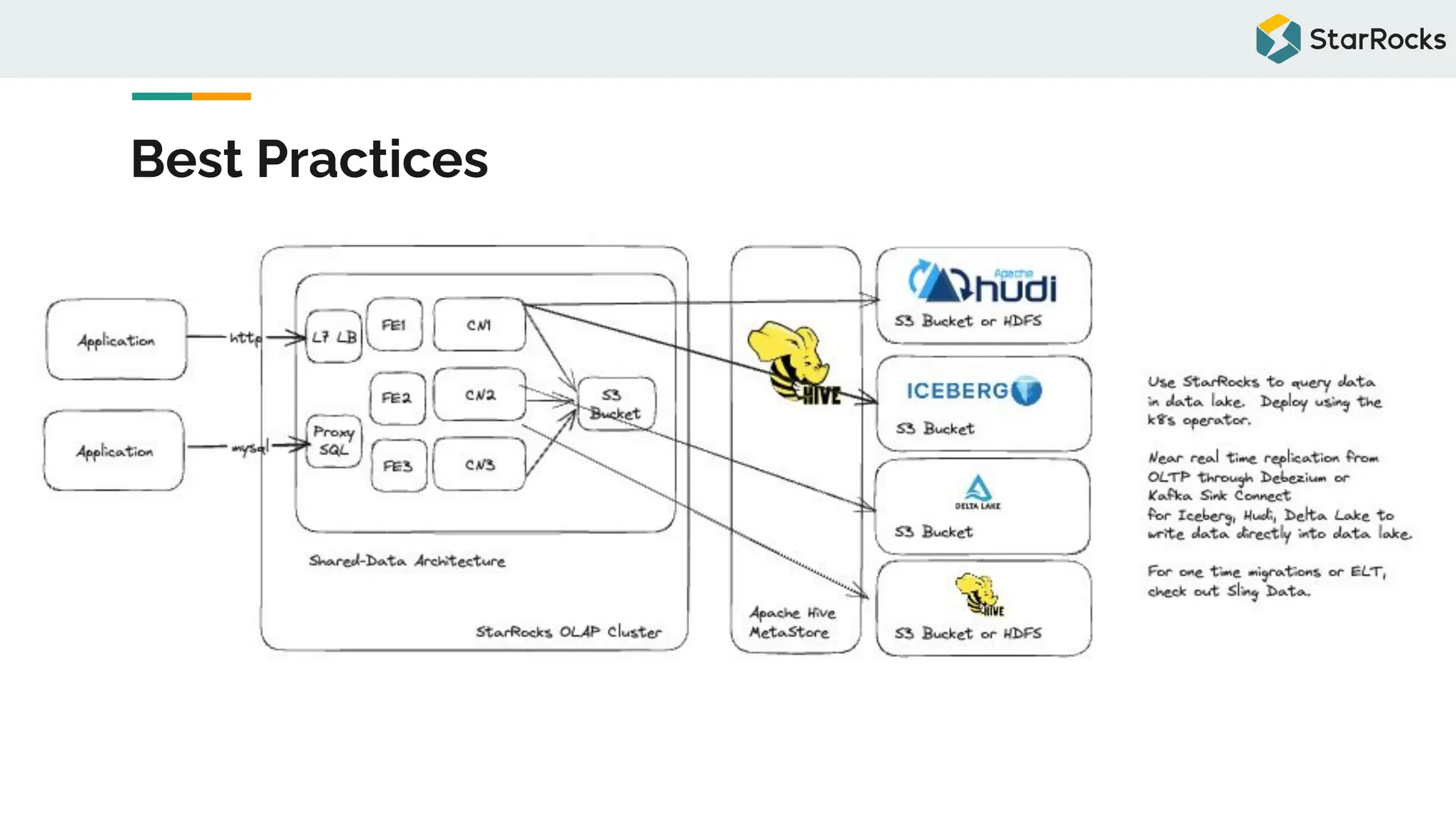

Best Practices

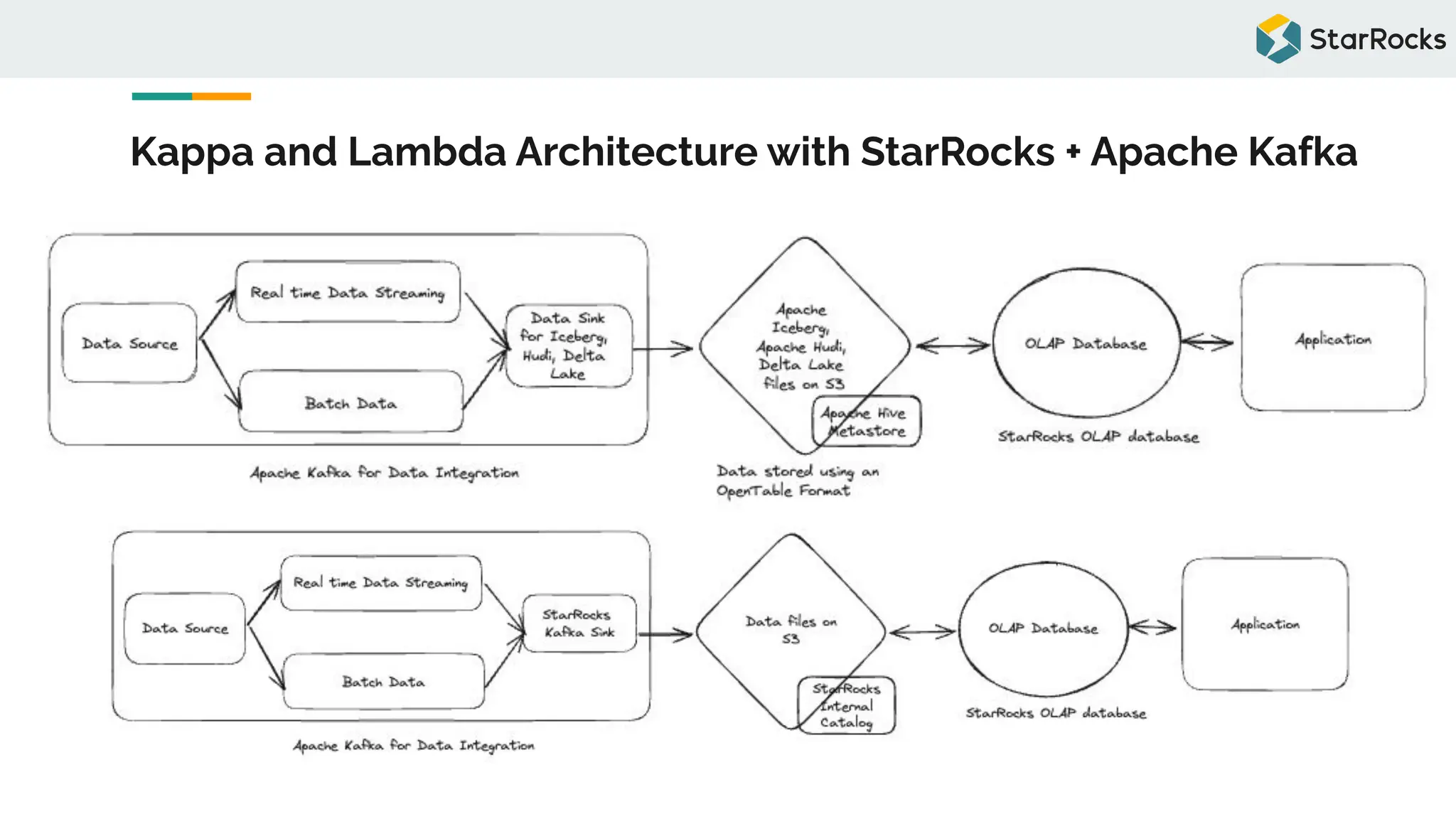

Kappa and Lambda Architecture with StarRocks + Apache Kafka

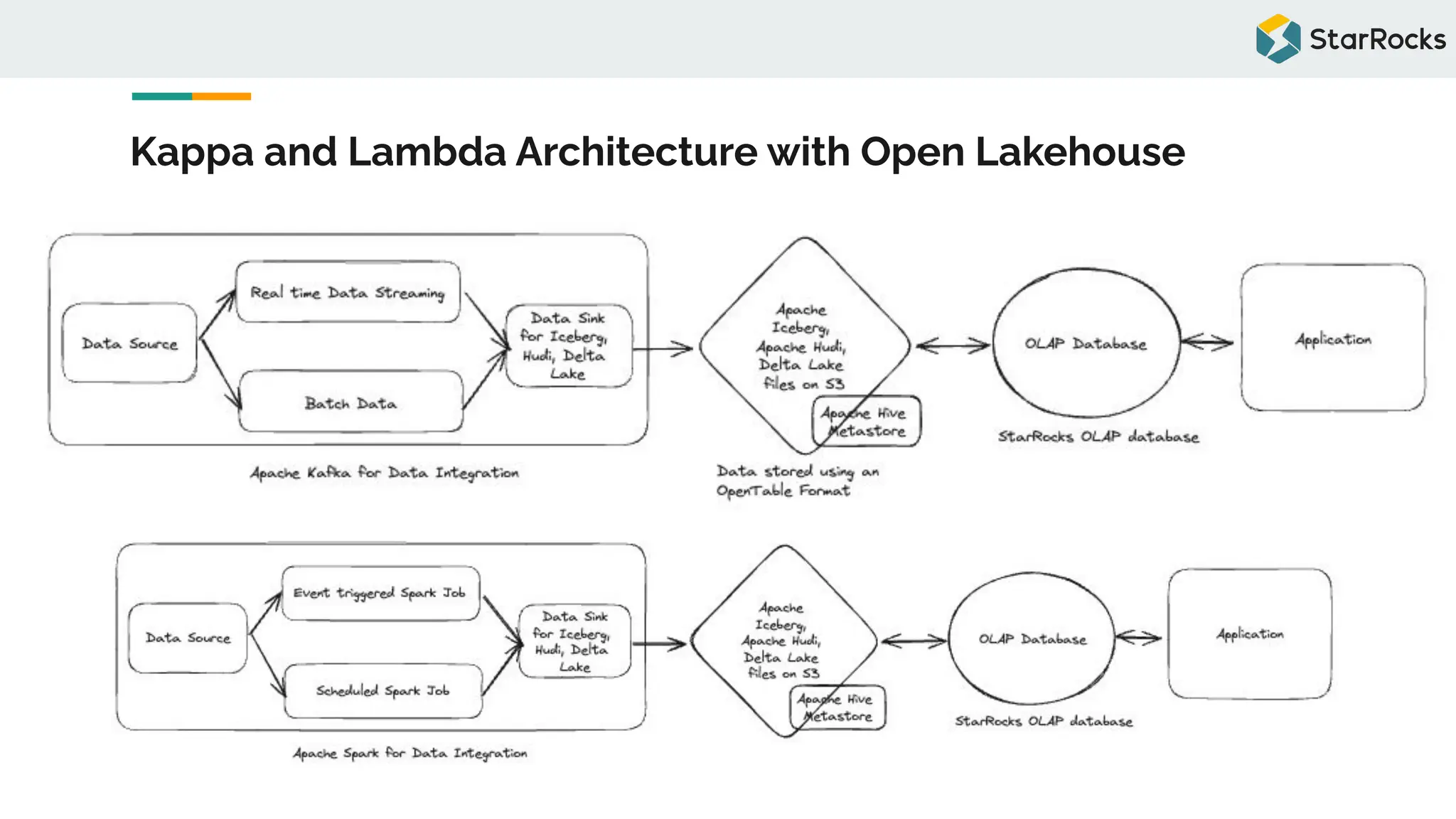

Kappa and Lambda Architecture with Open Lakehouse

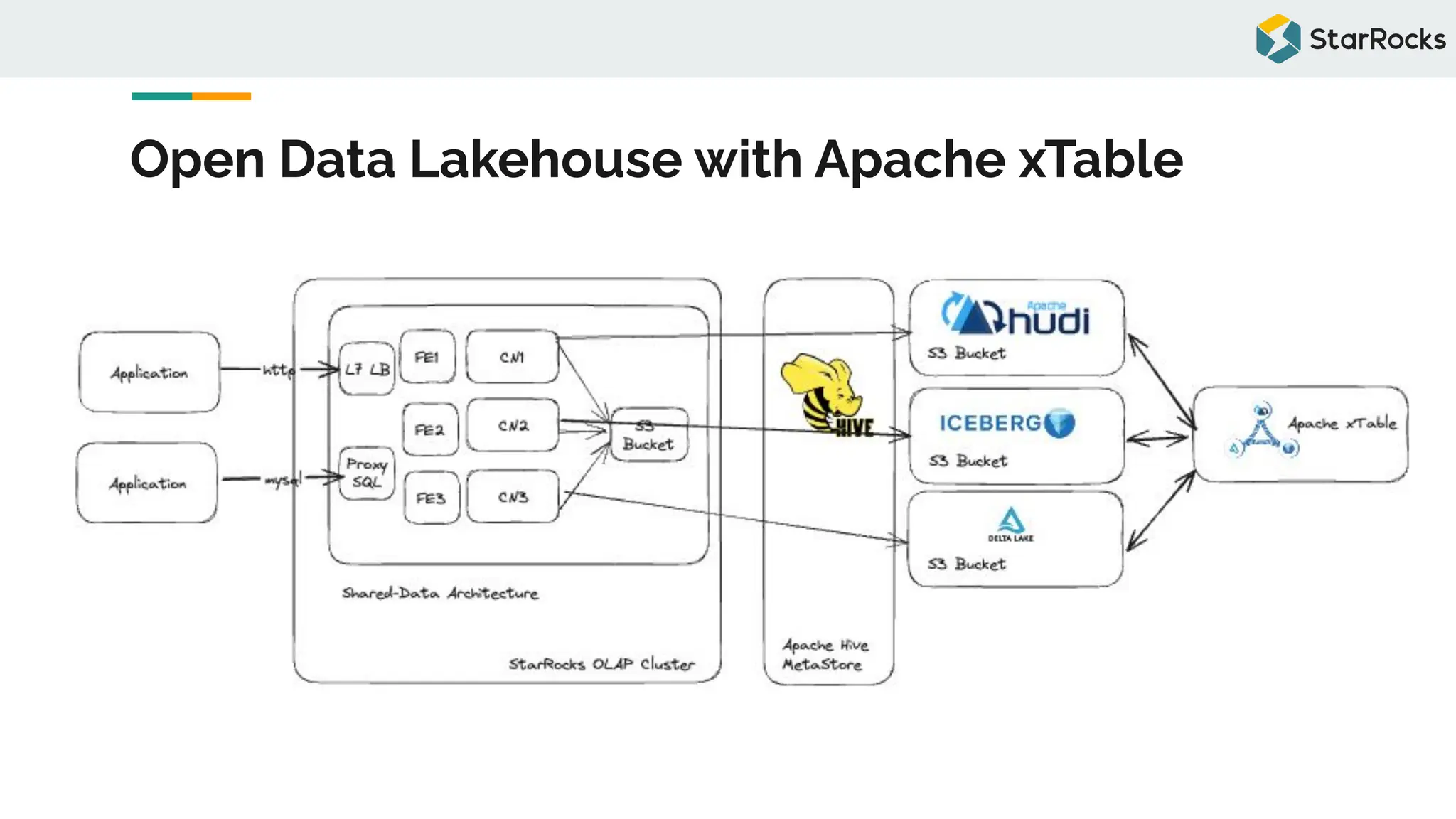

Open Data Lakehouse with Apache xTable

FastStone Capture 10.4 Crack + Serial Key [Latest]

More Related Content

Similar to FastStone Capture 10.4 Crack + Serial Key [Latest]

Recently uploaded

FastStone Capture 10.4 Crack + Serial Key [Latest]
